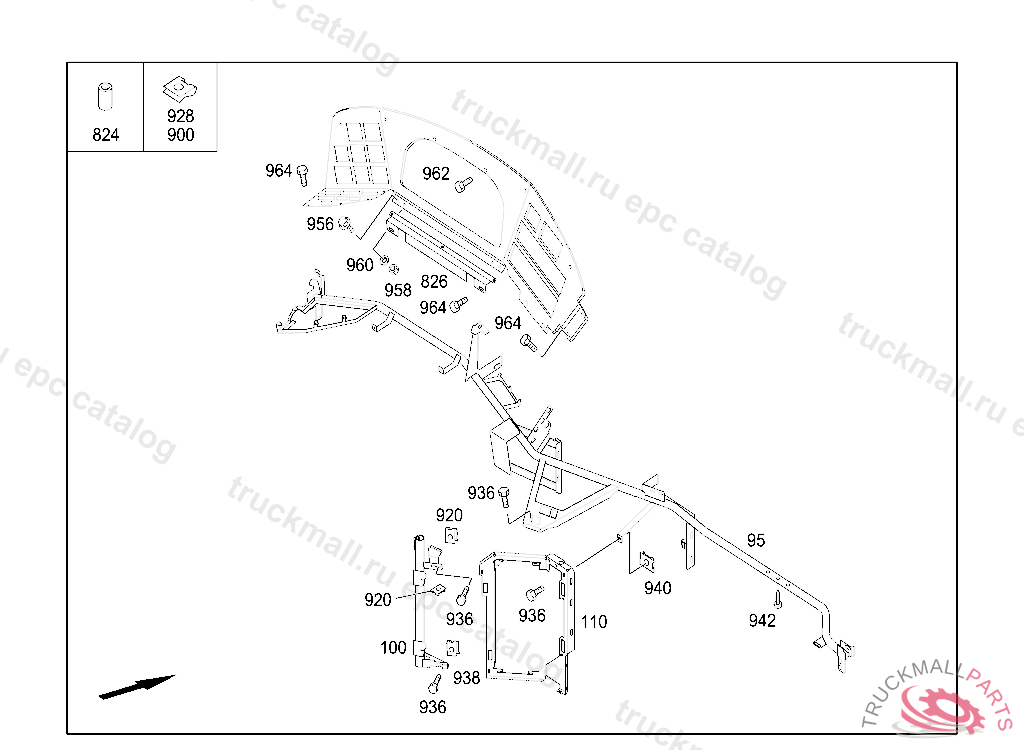

Поз.
Артикул
Описание
95
SUPPORT
100
BRACKET
110
CONSOLE
824
SPACER BUSH15X9X11LG.
826
ATTACHMENT ANGLE BRACKET
900
CLOP NUT4,8MM/2,5-5,0MM
920
LOCK NUT. SPRING NUT STEP TO ENTRANCE
928
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
936
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
938
LOCK NUT. SPRING NUT MOUNTING PARTS
940
CAGE NUTM 6
942
TAPPING SCREW BRACKET TO PLATE 4.8X38
956
CAPSCREW W HEXAL. DRIVEM5X20
958
NUT , Replaced By: N304032005005
960
WASHER BRACKET TO BATTERY CASE BRACKET
962
HEXALOBULAR BOLT PLUG SOCKET TO REAR CROSS MEMBER
964
TAPPING SCREW BRACKET MOUNTING 4.8X19
