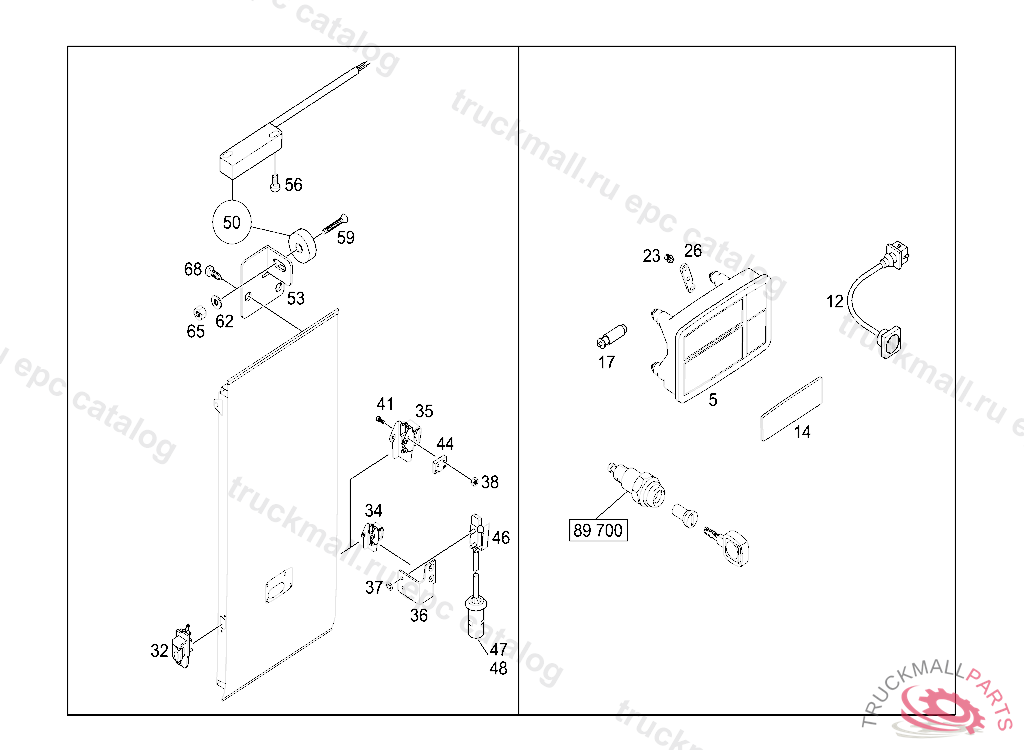

TOURISMO RH - 632.025 - 75 OUTSIDE FLAPS

Поз.
Артикул
Описание
5
A6297502793
HANDLE CENTRAL LOCKING, W/O CARRIER WITH SIDE LAMP LED
5
A6297502893
HANDLE MECHANICAL LOCKING, W/O CARRIER,WITH SIDE LAMP LED, FOR LUGGAGE FLAP
12
A6295400645
LAMP
14
A6298260040
REFLECTOR
17
A6298050001
CYLINDER
23
A6299880069
CLIP
26
A6297550035
LEVER
32
A0007500550
LOCK
34
A0007501950
LOCK
34
A0007500650
LOCK
35
A0007502450
LOCK
36
A6297545614
BRACKET
37
N912010003000
LOCK PLATE , A 372464 ALSO INSTALLED ON A 372469,A 372476,A 372477,A 372483,A 372490,A 372493,A 372505,A 372517,A 372519,A 372525,A 372539,A 372548,A 372572,A 372614, A 373051.EXCEPT FOR A 371956 F 348473
38
N000000006387
HEXAGON NUTM2
41
N000000006419
SCREW. HEXAGON HEAD BOLTM2X12
44
A0009820422
MICRO-SWITCH
46
A0098201810
SWITCH
47
A0155455428
SOCKET HOUSING. PLUG
48
A0145457726
ROUND PIN BUSHING
50
A0088204610
SOLENOID SWITCH
53
A6297541914
BRACKET SOLENOID SWITCH
56
N000000000448
TAPPING SCREW SWITCH TO BRACKET MBN 10169-ST3.5X16-C
59
A0019909320
SCREW, SPECIAL SHAPE. SCREWM4 X 16
62
N000000003718
WASHER ATTACHMENT OF ELECTRIC LEAD AND GROUND STRAP ON ALTERNATOR
65
N000000002106
NUTM4
68
N000000000482
TAPPING SCREW. SCREW DOOR CONTACT TO BODY 3,9X9,5
