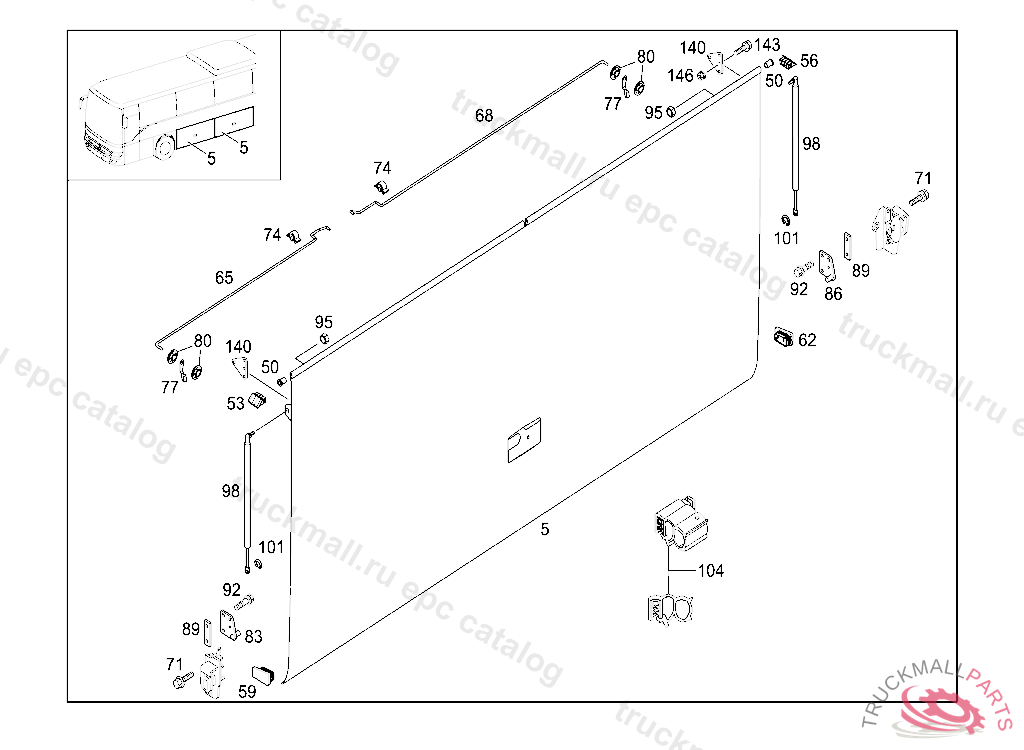

TOURISMO RH-M - 632.026 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
50
BUSHING
53
LOCKING CAP
56
LOCKING CAP
59
LOCKING CAP
62
LOCKING CAP
65
ROD. STRUTL437 MM
65
STRUTL646 MM
65
ROD LEFT L431MM
65
ROD LEFT L747MM
65
ROD LEFT L655MM
65
STRUTL372 MM
68
STRUTL423 MM
68
RODL883 MM
68
ROD. STRUTL498 MM
68
ROD RIGHT L707,5MM
68
ROD RIGHT L787MM
68
STRUTL707 MM
71
HEXAGON HEAD BOLT
77
LOCK
80
LOCK
83
STRIKER
86
STRIKER
89
PLATE
92
SCREW , Replaced By: N910143008000
95
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
98
SPRING PNEUMATIC SPRING 330N
98
SPRING PNEUMATIC SPRING 520 N
101
LOCK RING
104
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
140
BRACKET
143
SCREW , Replaced By: N914146006102
146
NUT , Replaced By: N913023006001
