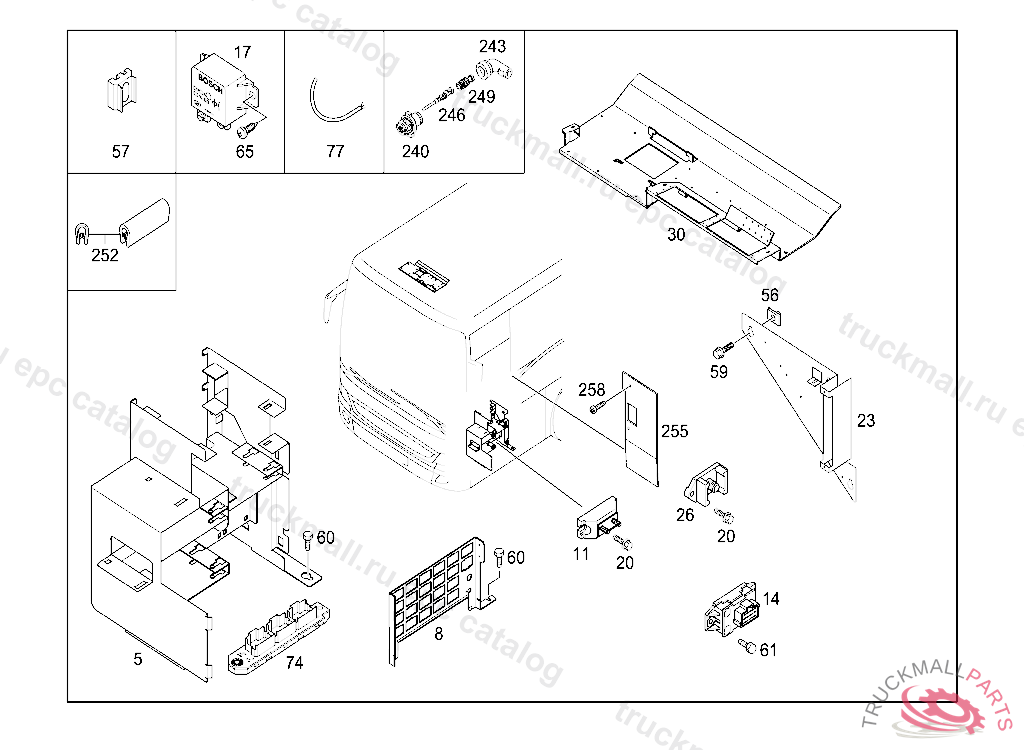

Поз.
Артикул
Описание
5
ELECTR. SWITCH PANEL
5
APPARATUS SUPPORT MAIN INSTRUMENT PANEL
8
BRACKET
11
CLAMPING PIECEM 6
11
BOLT TERMINAL STRIPM 6
14
CLUTCH STAR POINT (ELECTROMAGNETIC FILTER) "6", 18PIN
17
CONTACTOR
20
SCREW , Replaced By: N910143008002
20
SCREW. HEXAGON HEAD BOLT RELAY TO BRACKET M5X16
23
BRACKET , Replaced By: A6298280414
23
BRACKET
26
CABLE CONNECTOR ELECTRIC CABLES IN ARTICULATION AREA
30
APPARATUS PANEL
30
CONTROL CONSOLE
56
CLIP FASTENERM 6
56
NUTM8
56
NUT LOCK TO COVER
57
CAGE NUTM 6
57
CLIP FASTENERM 5
59
SCREW , Replaced By: N914146006102
59
SCREW BRACKET TO CAB REAR PANEL M 8X20
59
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
60
SCREW PIPE ELBOW TO BRACKET M8X12
61
SCREW BRACKET AND CLAMP M6X20
61
SCREW , Replaced By: N914146006102
61
SCREW ELECTRIC MOTOR TO WINDOW REGULATOR
65
TAPPING SCREW3.5X22
65
SHEET METAL SCREW BRACKET TO FLOOR PLATE
65
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
65
TAPPING SCREW MOUNTING PARTS 4.8X16
65
TAPPING SCREW MOUNTING, HANDLE MBN 10169-ST3.5X19-R
74
CLUTCH DISTRIBUTOR,CAN (CONTROLLER AREA NETWORK) " TEMIC "
77
ELECTRIC CABLE TWISTED 2X1MM2, ORDER BY THE METER
240
PLUG BIPOLAR, Replaced By: A0025402781
243
BOOT PLUG-IN CONNECTION,FUEL GAUGE SENSOR
246
CONTACT PIN
249
WIRE SEAL GREY 0.5-1.0 MM2
252
EDGE GUARD SECTION , ORDER BY THE METER
255
HEAT SHIELD
258
HEXALOBULAR BOLTM6X16
