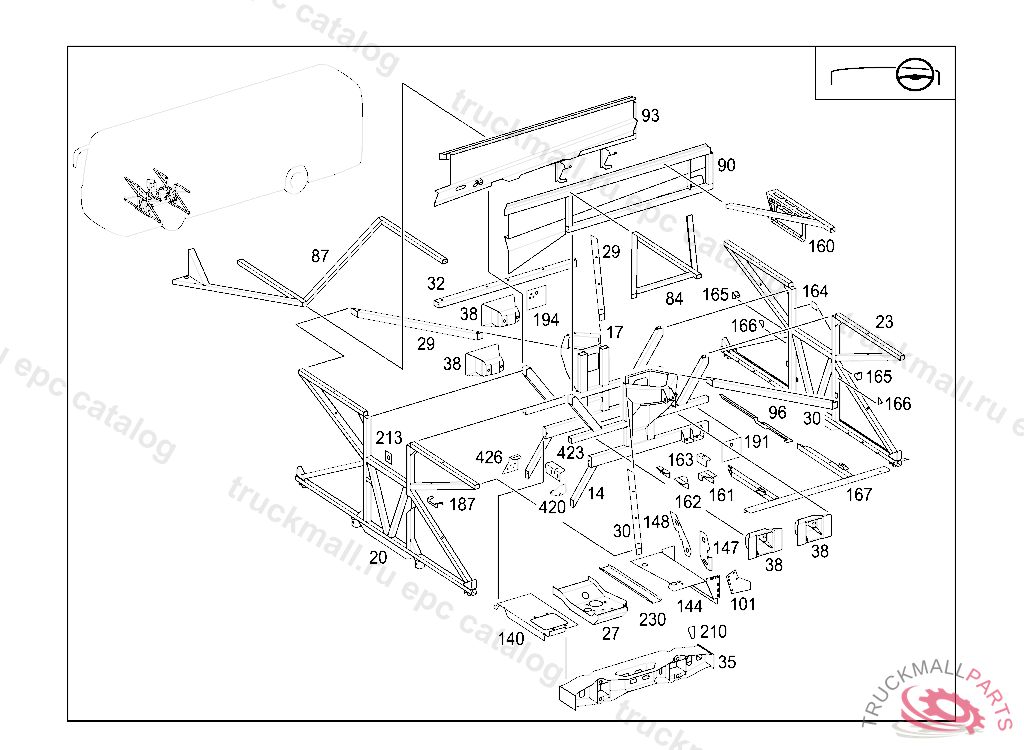

TOURISMO 15 RHD - 632.036 - 61 SUBSTRUCTURE
Поз.
Артикул
Описание
14
SIDE MEMBER FRONT AXLE,LEFT
14
SIDE MEMBER ABOVE FRONT AXLE,LEFT
17
SIDE MEMBER ABOVE FRONT AXLE,RIGHT
17
SIDE MEMBER FRONT AXLE,RIGHT
20
CROSS MEMBERQT 3
20
CROSS MEMBER3
23
CROSS MEMBERQT 4
23
CROSS MEMBER4
27
SIDE MEMBER
29
SUPPORT1038MM
30
SUPPORT
32
SUPPORT1287MM
35
CROSS MEMBER
35
CROSS MEMBER
38
BEARING FORMED PART
84
SUPPORT
87
SIDE MEMBER
90
SUPPORT LEFT
93
SUPPORT RIGHT
96
ANGLE
101
BRACKET
101
BRACKET
140
COVERING FRONT
140
COVERING
144
COVERING REAR
144
COVERING AT CROSS MEMBER 4
147
REINFORCEMENT LEFT
148
REINFORCEMENT RIGHT
160
SIDE MEMBER
161
BRACKET RIGHT
162
BRACKET LEFT
163
ANGLE
164
PLATE18X25MM
165
REINFORCEMENT
166
PLATE
167
SIDE MEMBER
187
BRACKET
191
PLATE
191
PLATE RIGHT 145X120MM
194
PLATE
194
PLATE LEFT 145X120MM
210
PLATE70X43MM
213
BRACKET
230
BRACKET
420
BRACKET
423
BRACKET
426
BRACKET
