Поз.
Артикул
Описание

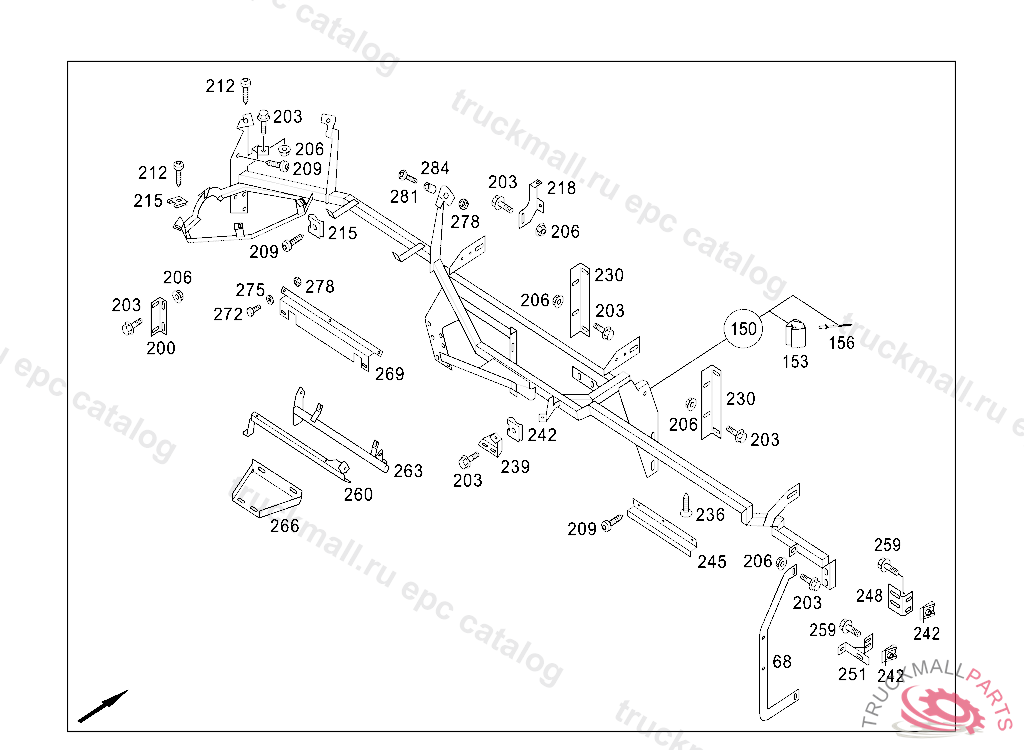

68
BRACKET
150
MOUNT SUPPORT STRUCTURE, Replaced By: A6326801614
150
MOUNT SUPPORT STRUCTURE
153
SPRING BRACKET MOUNTING
156
BLIND RIVET MOUNTING OF CARRIER 4X8
200
ANGLE ON LEFT A-PILLAR
203
SCREW , Replaced By: N914146006102
203
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
203
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
206
NUT , Replaced By: N913023006001
209
TAPPING SCREW BRACKET MOUNTING 4.8X19
209
SCREW CLAMP MOUNTING M 6X16
209
SHEET METAL SCREW BRACKET TO FLOOR PLATE
209
TAPPING SCREW MOUNTING PARTS 4.8X16
212
TAPPING SCREW LIGHT SWITCH 4.8X32
215
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
215
CLOP NUT4,8MM/2,5-5,0MM
218
REST FRONT
218
PADDING FRONT, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.10.2007
230
ATTACHMENT ANGLE BRACKET RIGHT BULKHEAD
236
TAPPING SCREW BRACKET TO PLATE 4.8X38
239
ANGLE
242
NUTM8
242
LOCK NUT. SPRING NUT STEP TO ENTRANCE
245
ANGLE
248
ATTACHMENT ANGLE BRACKET
251
ANGLE
259
SCREW , Replaced By: N910143008000
260
BRACKET SWITCH PANEL WITHOUT PAY MACHINE
263
BRACKET SWITCH PANEL WITH PAY MACHINE
266
STAY
269
ANGLE
272
CAPSCREW W HEXAL. DRIVEM5X20
275
WASHER BRACKET TO BATTERY CASE BRACKET
278
NUT , Replaced By: N304032005005
281
HEXALOBULAR BOLT PLUG SOCKET TO REAR CROSS MEMBER
284
SPACER BUSH15X9X11LG.
