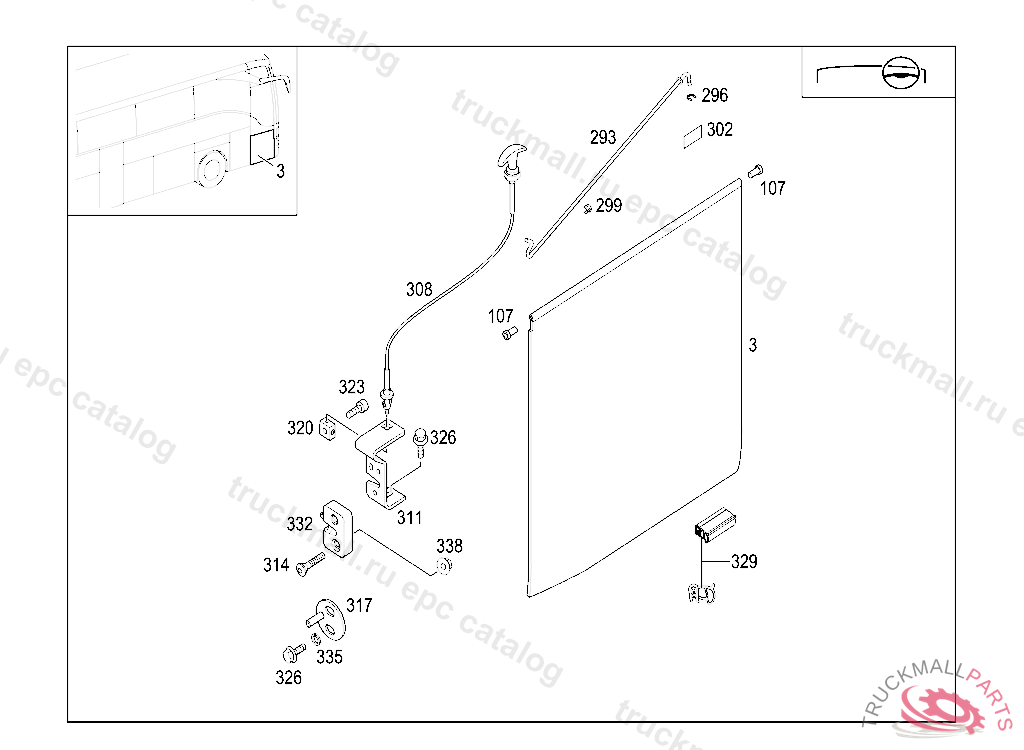

TOURISMO 15 RHD - 632.036 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
3
FLAP
107
BUSHING
293
ROD
296
LOCKING WASHER. LOCK PLATE CLUTCH PEDAL RESET
299
BRACKET
302
RUBBER SEAL. SEALING STRIP LAMP SUPPORT
308
STRAP
311
BRACKET
314
SCREW. HEXAL. SOCKET CSK. BOLTM8X30
317
STRIKER
320
CLIP
323
SCREWM 5 X 10
326
SCREW BRACKET TO CAB REAR PANEL M 8X20
329
RUBBER SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
332
LOCK LEFT
335
WASHER BRACKET TO CAB REAR PANEL
338
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
999
LOOM TIE
