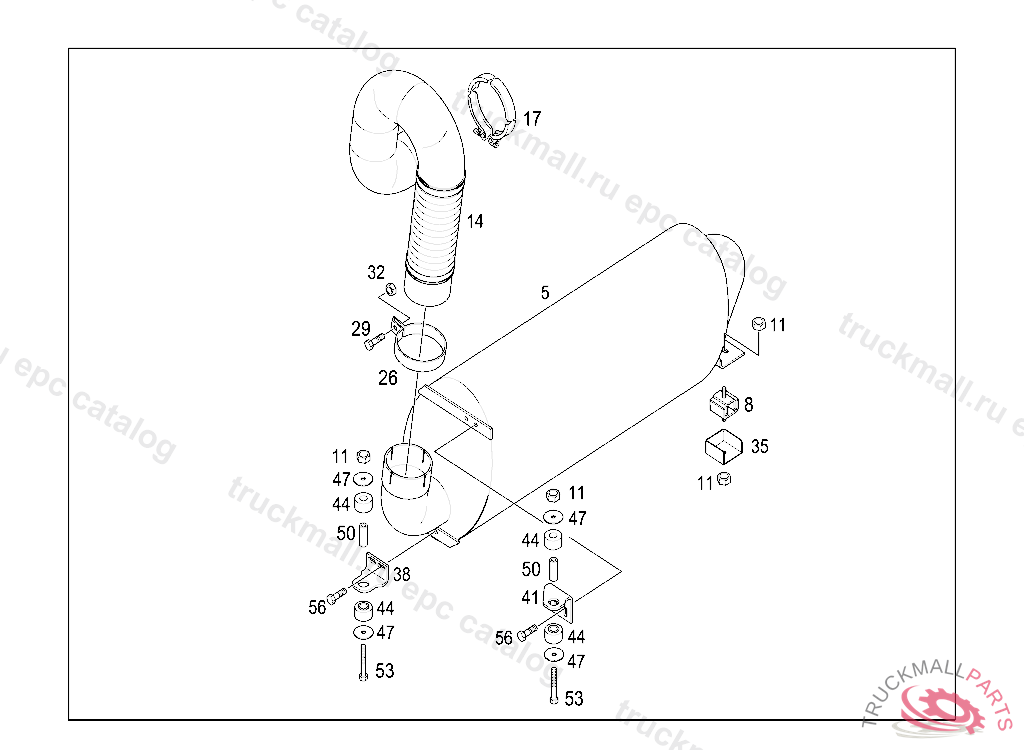

Поз.
Артикул
Описание
5
EXHAUST MUFFLERVST
8
RUBBER MOUNTING
11
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
14
EXHAUST PIPE , Replaced By: A6294902010
14
EXHAUST PIPE
17
CLAMP EXHAUST SYSTEM D124,5MM, Replaced By: A6554920140
17
CLAMP FRONT EXHAUST PIPE TO THROTTLE HOUSING
17
CLAMP , Replaced By: N071555124501
26
CLAMP , Replaced By: N071555124501
26
CLAMP EXHAUST SYSTEM D124,5MM, Replaced By: A6554920140
26
CLAMP
29
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
29
SCREW BRACKET TO SIDE MEMBER M10X35
32
NUT SUPPORT TO SIDE MEMBER
32
NUT , Replaced By: N913023010002
35
PROTECTIVE PLATE
38
CONSOLE
41
CONSOLE
44
BUFFER
47
WASHER50X11X3MM
50
SPACER TUBE
53
HEXAGON HEAD BOLT. SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING
56
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
