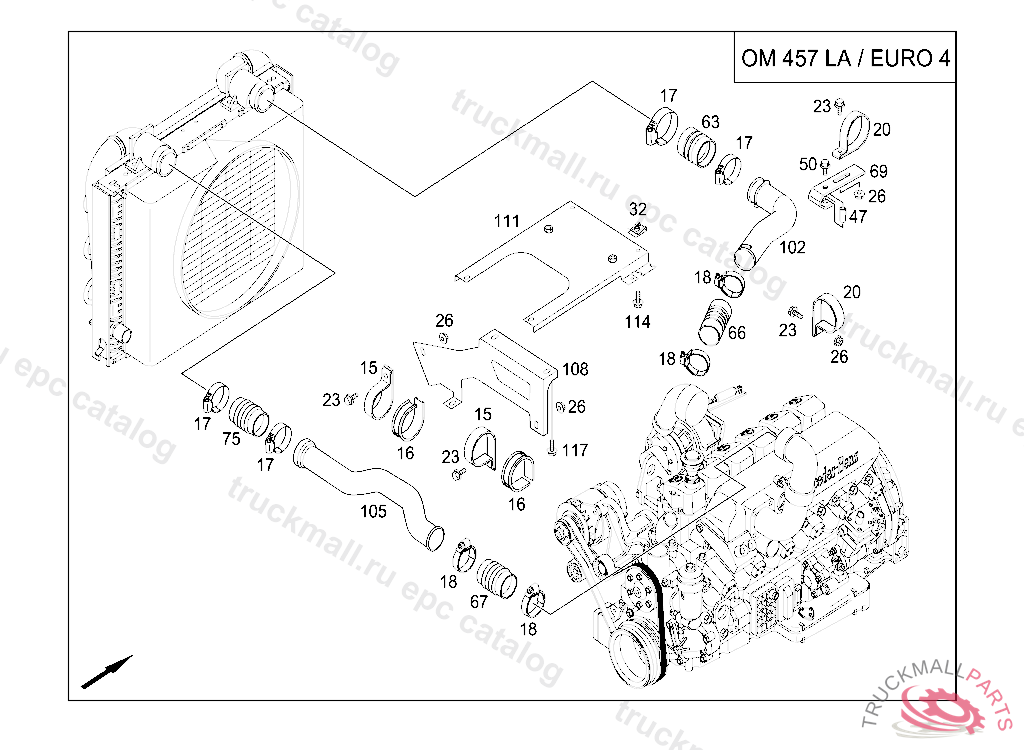

Поз.
Артикул
Описание
15
FASTENING CLAMP ALSO ORDER:A 000 987 75 14 105MM
16
RUBBER STRIP
17
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
17
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
18
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
18
HOSE CLAMP
20
FASTENING CLAMP100MM, FROM IDENT NO. WEB 629011 13 520031 ALSO INSTALLED ON WEB 629011 13 520024 , WEB 629011 13 520025 , WEB 629011 13 520027 , WEB 629011 13 520029
23
SCREW BRACKET TO SIDE MEMBER M10X35
26
NUT , Replaced By: N913023010002
32
LOCK. NUT , Replaced By: A0039941745
32
SPRING-THREAD NUT PROTECTIVE PLATE
47
BUSHING
50
SCREW , Replaced By: N910105010017
63
HOSE
66
CHARGE AIR HOSE. HOSE (ACCORDION TUBE) FROM AIR INTAKE PIPE TO INTAKE FITTING
66
HOSE100X200MM
67
HOSE100X200MM
67
CHARGE AIR HOSE FROM CHARGING AIR INTERCOOLER TO ENGINE
69
BRACKET
69
BRACKET
75
ACCORDION HOSE CHARGING-AIR-INTERCOOLER/TURBOCHARGER CONNECTION
102
CHARGE AIR DUCT
105
CHARGE AIR PIPE
108
BRACKET
111
CONSOLE
114
SCREW , Replaced By: N910143008000
117
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
