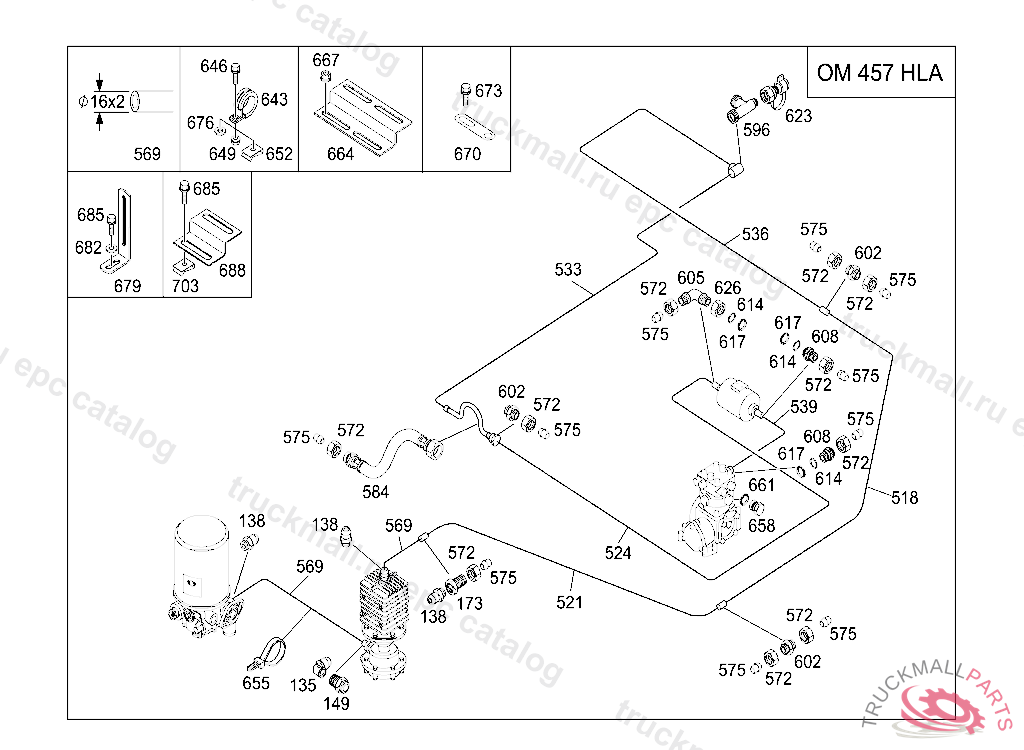

Поз.
Артикул
Описание
135
ELBOW FITTINGP5/16X2/90GR RAUFOSS
138
FITTING16X2/M22X1.5 RAUFOSS
149
FITTINGP5/M22X1.5 RAUFOSS
173
FITTINGM22X1.5/M26X1.5 RAUFOSS
518
LINE1550MM
521
LINE1450MM
524
LINE900LG
524
LINE
533
LINE1150LG
536
LINE1100LG
536
LINE970LG
539
LINE340 LG.
539
LINE280LG
569
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
572
NUT COMPRESSED AIR LINES
572
UNION NUT LINE MOUNTING
575
CUTTING RINGBL 18
584
COMPRESSED AIR HOSE FROM HOSE TO MUFFLER
584
BRAKE HOSE FROM HOSE TO MUFFLER, Replaced By: A0014292635
596
FITTINGL18-18-10
602
CONNECTION FITTING LINE CONNECTIONS
602
CONNECTION FITTING , Replaced By: N003902018002
605
FITTING
605
FITTING
608
SCREW-IN FITTING , Replaced By: A0029970271
608
SCREW-IN FITTING AIR COMPRESSOR,CONNECTION: "20"
614
SEAL RING24X3
617
THRUST RING
623
TEST CONNECTIONM16X1.5
626
NUT 3/2-WAY VALVE TO CAB,4 685151
643
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
643
MOUNTING CLAMP SILICONERSGU S 18/15
643
MOUNTING CLAMP16/15
643
CLAMP10/15
643
CLAMPRSGU S 18/15
643
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
643
CLAMP16/15, Replaced By: A0019950842
643
CLAMP LINE MOUNTING 15-18 MM,V 207570
643
CLAMP , Replaced By: N916016010211
643
CLAMP , Replaced By: N916016015202
643
CLAMP BRAKE HOSE BRACKET
646
SCREW BRACKET AND CLAMP M6X20
649
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
652
LOCK NUT. SPRING NUT MOUNTING PARTS
655
CABLE TIE LINE MOUNTING 375X8.4MM
658
PLUGM12X1.5
661
SEAL RING LINE CONNECTION
664
RAIL LINE MOUNTING 115 LG.
667
NUT HORN TO BRACKET M8
670
BRACKET LINE MOUNTING
673
SCREW BRACKET TO SIDE MEMBER M10X35
676
WASHER LINE MOUNTING
679
BRACKET
682
WASHER , Replaced By: N009021008213
685
SCREW SPEED SENSOR TO REAR AXLE
685
SCREW , Replaced By: N910143008000
688
"Z" SECTION60MM, Replaced By: A6279850349
703
NUTM8
