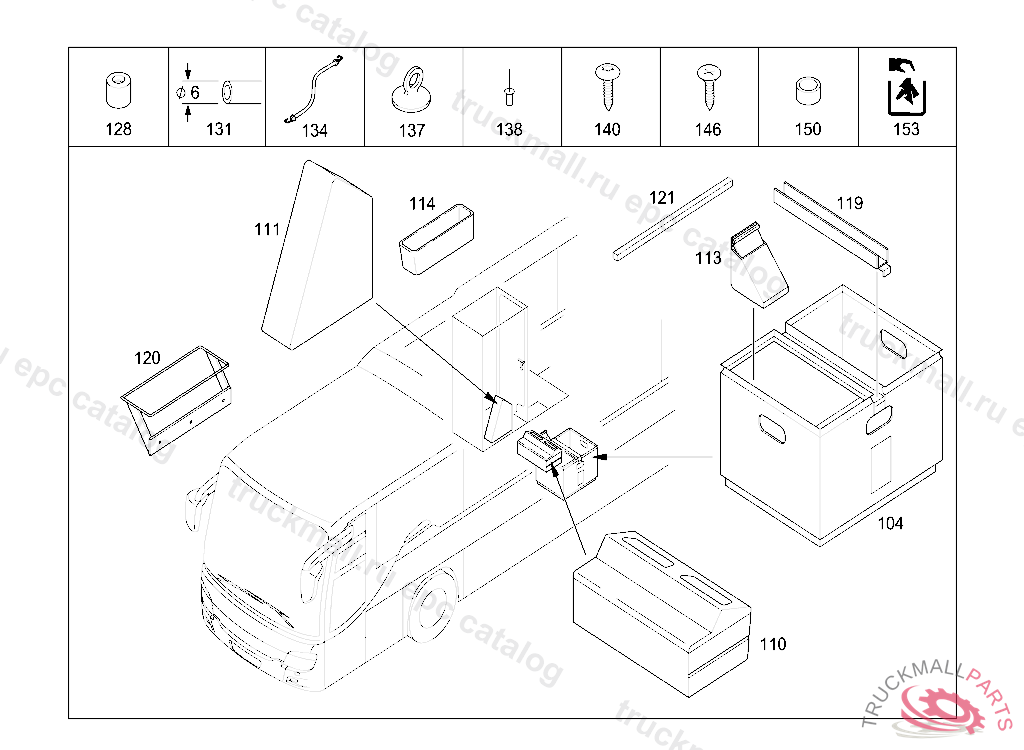

S 416 GT - 632.125 - 84 TRUNKS AND CASES
Поз.
Артикул
Описание
104
CONTAINER90 LTR
110
GARBAGE CAN
111
CONTAINER
113
FLAP LITTER-BIN
114
BOTTOM
119
FIXTURE
120
FIXTURE
121
LEDGE
128
RUBBER BUFFER
131
RUBBER STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
134
ELASTIC BAND
137
EYELG-800 MM
138
RIVET4,0 X 10,2
140
TAPPING SCREW BRACKET MOUNTING 3.5X25
140
SCREW, SPECIAL SHAPE3,5X13MM
140
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
146
TAPPING SCREW. SCREW HANDLE TO BACKREST
146
TAPPING SCREW3.5X19
150
LOCKING CAP
150
LOCKING CAP
153
KEYHOLE COVER LITTER-BIN
153
KEYHOLE COVER LITTER-BIN
999
FABRICNADELFILZ, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
