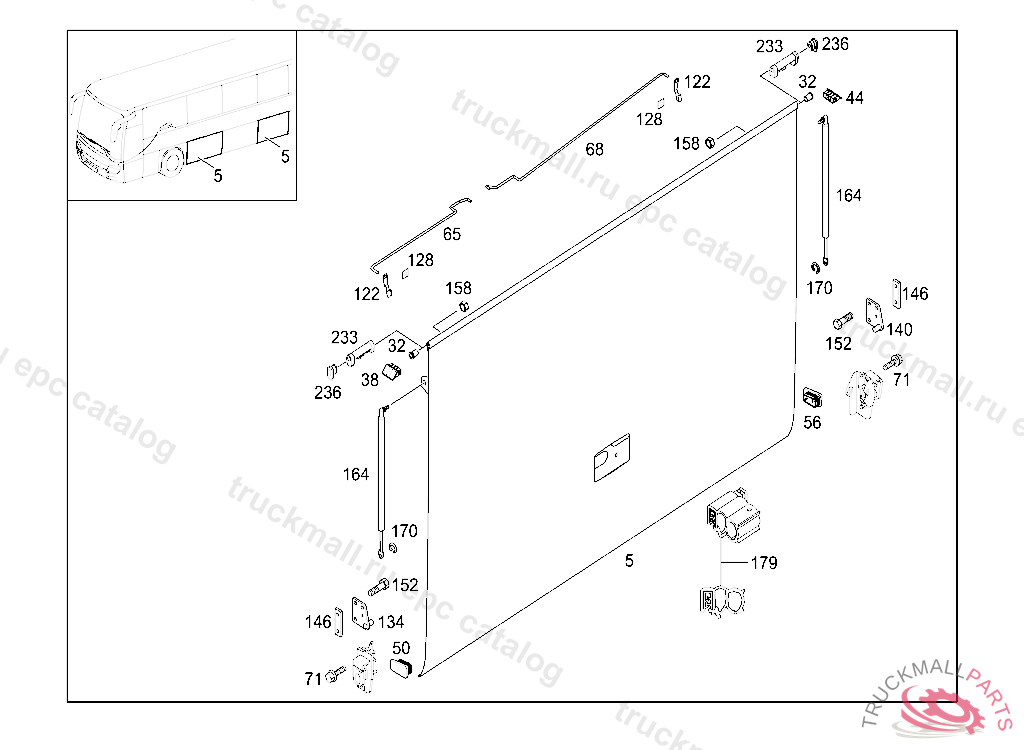

S 416 GT - 632.125 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
5
HINGED DOOR
5
FLAP SWING FLAP L1810MM
32
BUSHING
38
LOCKING CAP
44
LOCKING CAP
50
LOCKING CAP
56
LOCKING CAP
65
ROD LEFT L747MM
65
STRUTL646 MM
65
STRUTL372 MM
65
ROD. STRUTL437 MM
65
ROD LEFT L431MM
65
ROD LEFT L655MM
68
RODL883 MM
68
STRUTL707 MM
68
STRUTL423 MM
68
ROD RIGHT L707,5MM
68
ROD RIGHT L787MM
68
ROD. STRUTL498 MM
71
HEXAGON HEAD BOLT
122
LOCK
128
LOCK
134
STRIKER
140
STRIKER
146
PLATE
152
SCREW , Replaced By: N910143008000
158
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
158
NUT HINGE LEVER TO MOUNTING
164
SPRING PNEUMATIC SPRING 520 N
164
SPRING PNEUMATIC SPRING 330N
164
SPRING PNEUMATIC SPRING 250N
170
LOCK RING
179
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
233
BUSHING
236
PROTECTIVE CAP
