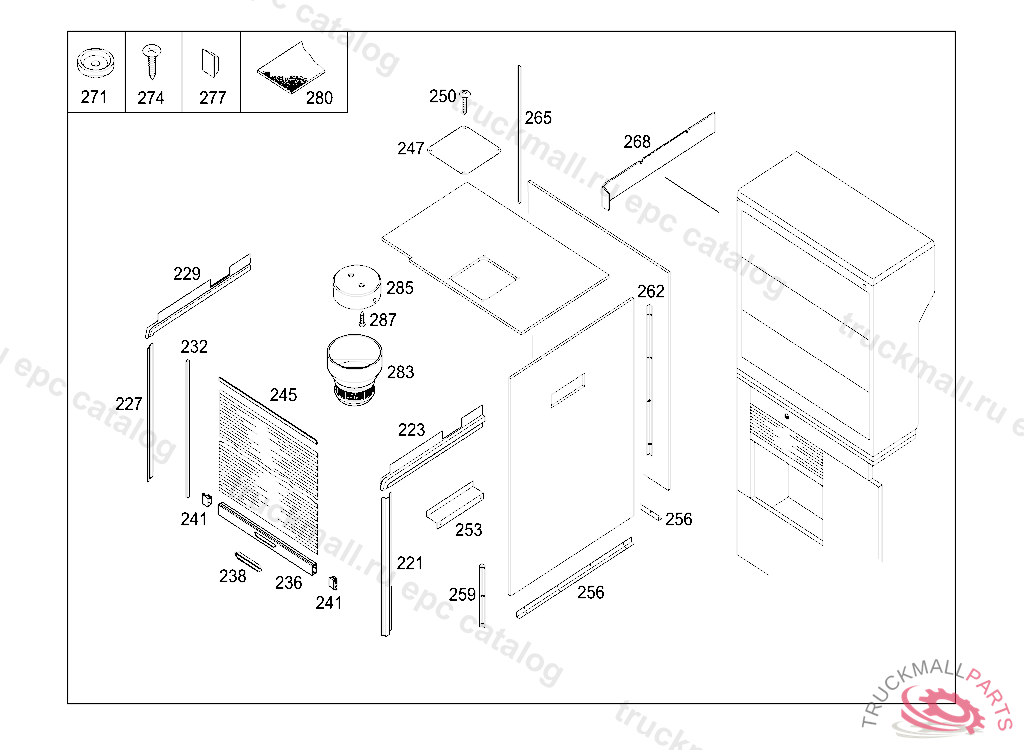

Поз.
Артикул
Описание
221
RAIL LEFT TUERA
223
RAIL
227
RAIL RIGHT TUERA
229
RAIL
232
LEDGE
232
LEDGE
236
LEDGE
238
SHELL-TYPE HANDLE
241
SPACER
245
RETRACTABLE COVER PROFILEL613 MM
247
COVER
250
TAPPING SCREW BRACKET MOUNTING
253
BRACKET
253
BRACKET
256
LEDGE
256
LEDGE
259
ANGLE
262
LEDGE
265
SEALING TAPE20X6MM/1500LG, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
268
PANELLING
268
PANELLING
271
WASHER W CHAMFER FABRIC GUARD PLATE
274
TAPPING SCREW. SCREW FASTENING SOLONOID SWITCH 3.5X32MM
274
TAPPING SCREW CLOTHES-HOOK TO BODY
274
TAPPING SCREW3.5X22
274
TAPPING SCREW RAIL
274
SHEET METAL SCREW
274
TAPPING SCREW DRIVER'S PARTITION PANEL 3,5X25MM
274
TAPPING SCREW3.5X25
277
RUBBER BUFFER TO GLASS PANE,BOTTOM
280
CARPET , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
283
SMOKE DETECTORORS 142
285
SMOKE DETECTOR SOCKET TO BODY
287
COUNTERSUNK WOOD SCREW
999
SPRING COTTER
999
SPRING NUTDM 4
999
MOUNTING CLIP
999
ADHESIVE THREAD LOCK 50G
999
ELECTRICAL WIRING HARNESS FOR COVER
999
ELECTRICAL WIRING HARNESSFUER BUSADAPTER
999
ELECTRICAL WIRING HARNESS FOR INNER MEMBER
