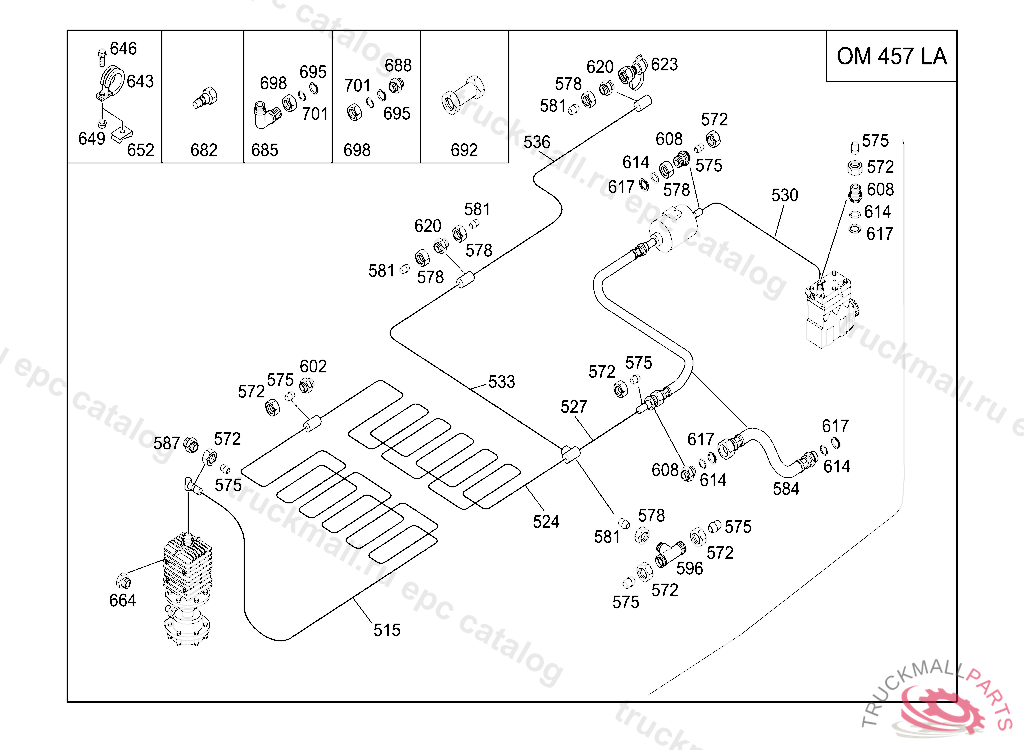

Поз.
Артикул
Описание
515
SPIRAL TUBE
515
LINE18X1.5X2010
524
LINE18X1.5X1910
524
SPIRAL TUBE
524
LINE390 LG.
527
LINE150 LG.
530
LINE18X1.5X730
533
LINE10X0.75X1730
536
LINE1470MM
572
NUT COMPRESSED AIR LINES
572
UNION NUT LINE MOUNTING
575
CUTTING RINGBL 18
578
UNION NUT
581
GLAND
584
COMPRESSED AIR HOSE FROM HOSE TO MUFFLER
584
BRAKE HOSE FROM HOSE TO MUFFLER, Replaced By: A0014292635
587
SCREW-IN FITTING CHECK VALVE,V 207570
587
SCREW-IN FITTING RELAY VALVE,CONNECTIONS: "32,34"
596
T-FITTINGM26X1.5/M16X1.5/M26X1.5
602
FITTING BETWEEN THE LINES
602
CONNECTION FITTING LINE CONNECTIONS
608
FITTING
608
SCREW-IN FITTING AIR COMPRESSOR,CONNECTION: "20"
608
SCREW-IN FITTING , Replaced By: A0029970271
614
SEAL RING24X3
614
SEAL RING RIGHT SPRING-LOAD ACCUMULATOR 10X2.2
614
SEAL RING LINE CONNECTION
617
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
617
THRUST RING SUCTION LINE TO OIL PUMP
617
THRUST RING
620
CONNECTION FITTING LINE CONNECTIONS
620
FITTINGM 16X1.5
623
TEST CONNECTIONM16X1.5
643
CLAMPRSGU S 18/15
643
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
643
CLAMP16/15, Replaced By: A0019950842
643
CLAMP LINE MOUNTING 15-18 MM,V 207570
643
CLAMP6/15, Replaced By: N000000007509
643
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 6/15
643
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
643
MOUNTING CLAMP16/15
643
CLAMP10/15
643
MOUNTING CLAMP SILICONERSGU S 18/15
646
HEXAGON HEAD BOLT. SCREW RELAY TO APPARATUS PLATE M 5X20
646
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
646
SCREW BRACKET AND CLAMP M6X20
649
NUT BRACKET TO FIRE WALL
649
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
649
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
652
LOCK NUT. SPRING NUT MOUNTING PARTS
652
NUT LOCK TO COVER
664
RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
664
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
682
TEST CONNECTOR PNEUMATICM16X1.5
685
SCREW-IN FITTINGM16X1.5/M22X1.5
688
SCREW-IN FITTINGM16X1.5/M22X1.5
692
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
692
NON-RETURN VALVE CHECK VALVE
695
THRUST RING CHECK VALVE TO AIR RESERVOIR
698
NUTM22X1.5
701
SEAL RING20.3X2.4
999
AXLE MODULATOR DRIVING AXLE
999
COMPRESSED AIR LINE
999
COMPRESSED AIR LINE
999
COMPRESSED AIR LINE
