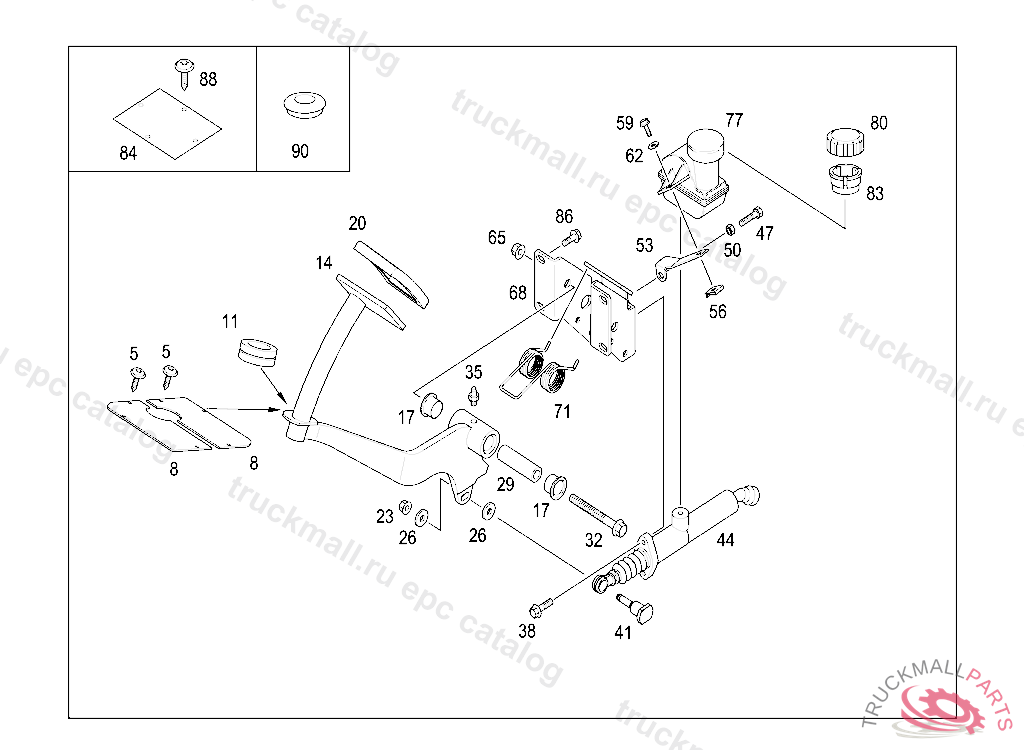

Поз.
Артикул
Описание
5
HEXALOBULAR BOLTM16X1.5X30
5
TAPPING SCREW WIRE CABLE TO CAB 4.2X9.5
8
COVER PLATE53X140MM
11
STOP CLUTCH PEDAL STOP
14
PEDAL CLUTCH
14
PEDAL CLUTCH PEDAL ASSEMBLY
17
BUSHING CLUTCH PEDAL 23X20X16,5MM
20
PAD CLUTCH PEDAL 106X70MM
23
NUT HORN TO BRACKET M8
26
WASHER CLUTCH PEDAL PUSH ROD C35K
29
GUIDE CLUTCH PEDAL 22X5X65,5MM
32
HEXAGON HEAD BOLT. SCREW SHIFTING TUBE TO SHIFT LEVER M 10X90
35
GREASE NIPPLE LOCK ANGLE SENSOR
35
GREASE NIPPLE FOR SPRING
38
HEXAGON HEAD BOLT
41
PIN PUSH ROD
44
MASTER CYLINDER CLUTCH
47
SCREWM8X35MM
50
NUT BATTERY CASE
53
BRACKET
56
LOCK. NUT , Replaced By: A0039941745
59
SCREW. HEXAGON HEAD BOLTM6X20MM
62
WASHER LINE MOUNTING
65
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
68
CONSOLE CLUTCH PEDAL TO CONSOLE
68
CONSOLE CLUTCH PEDAL 142X86MM
71
SPRING TORSION SPRING ON BRACKET
77
RESERVOIR
80
COVER , Replaced By: A0004307514
83
STRAINER , Replaced By: A0004314334
84
PLATE
86
SCREW , Replaced By: N910143008000
88
TAPPING SCREW WIRE CABLE TO CAB 4.2X9.5
90
PLUGASTRONIC
90
PLUG33,5D
