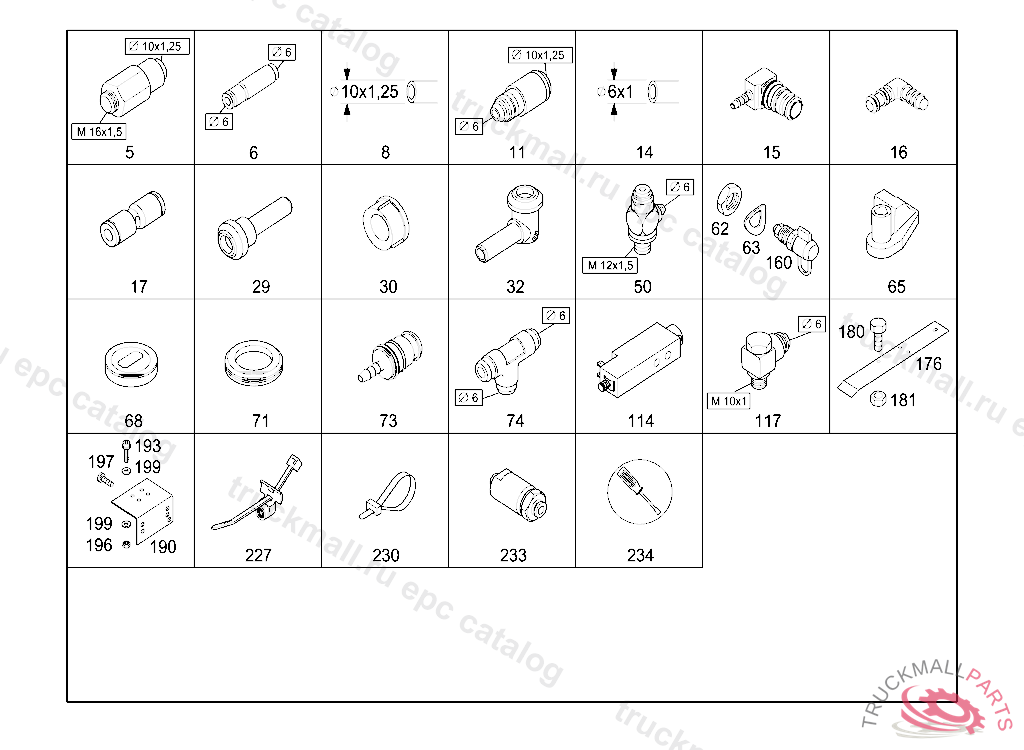

Поз.
Артикул
Описание
5
VALVE
6
VALVED6 MM
8
PLASTIC PIPE10X1.25, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
11
THREADED UNION
14
PLASTIC PIPE RISING PIPE 4X6 MM
15
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 4 MM, VOSS 232
16
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM, VOSS 232
17
COUPLING DRIVER'S SEAT SA 48084
29
PLUG
30
PLUG
32
ELBOW FITTING
50
FITTING
62
NUTM16X1.5 RAUFOSS
63
LOCK CONSOLE TO TRANSMISSION
65
RETAINING CLIP
68
GROMMET
71
GROMMET
73
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M22, 4MM, VOSS 232
74
T-FITTING
160
TEST CONNECTIONM16X1.5/M16X1.5
160
TEST CONNECTION
176
BRACKET
180
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
180
SCREW , Replaced By: N914146006102
181
NUT BRACKET TO FIRE WALL
227
CABLE TIE. BRACKET ELECTRIC CABLE TO ALTERNATOR 151 MM
230
CABLE TIE , Replaced By: A0049971890
230
LOOM TIE LINE MOUNTING 280 MM
230
CABLE STRAP202X4.8MM
233
FILTER
234
ADHESIVE LABEL
