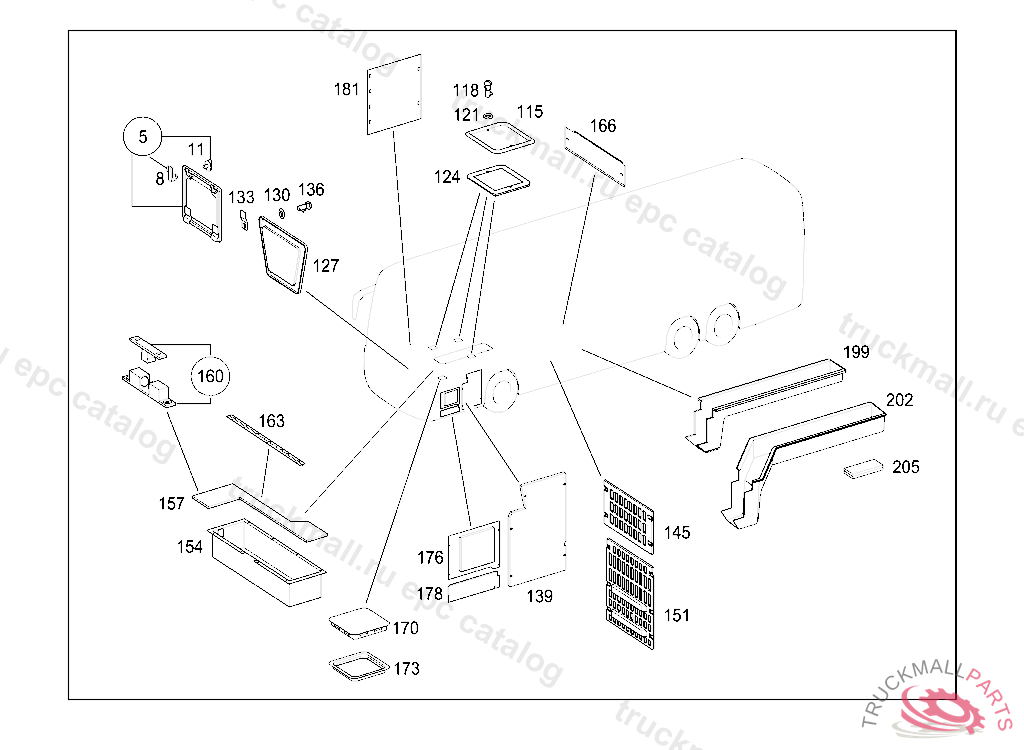

S 417 GT-HD 3-ACHSER - 632.133 - 68 PANELLING AND LINING
Поз.
Артикул
Описание
5
CLOSING COVER
8
ROTARY CATCH
11
ROTARY CATCH
115
COVER ABS
118
FASTENER SUPERFIX
121
WASHER PUMP TO CONSOLE
124
COVERING
127
PANELLING PANE WIPER
130
FASTENING CLIP
130
WASHER6 MM
133
FASTENER
136
PIVOT PIN
139
COVERING ELECTRICAL COMPARTMENT
151
COVERING CROSS MEMBER 4
154
SHEET-METAL PAN
157
PLYWOOD2500X1530X15MM, TO BE ADAPTED DURING ASSEMBLY
157
FLOOR FLAP
160
SNAP LOCK
163
HINGE PLATE
166
COVERING , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.05.2009
170
SERVICING COVER
173
FRAME
176
COVER ELECTRICAL COMPARTMENT
178
COVER ELECTRICAL COMPARTMENT
