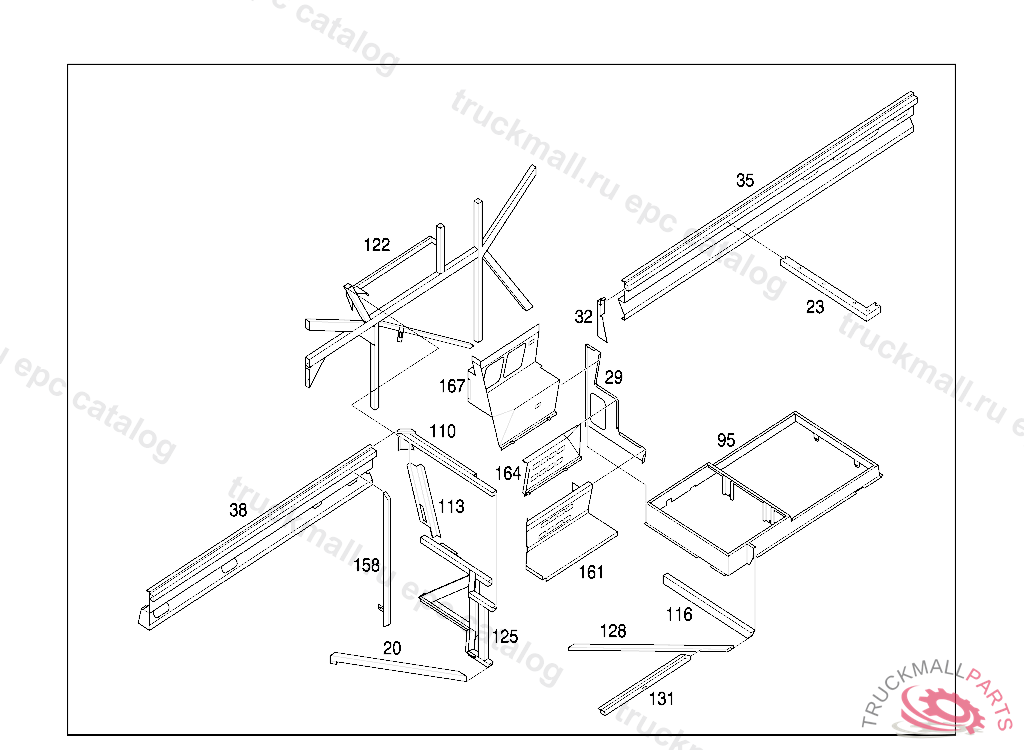

S 417 GT-HD 3-ACHSER - 632.133 - 66 INSTALLATIONS
Поз.
Артикул
Описание
20
SUPPORT
20
SUPPORT
20
SUPPORT BOTTOM
20
SUPPORT
23
FRAME
29
SIDE PANEL
32
FRAME TOP
32
SUPPORT
32
SUPPORT , Replaced By: A6296601123
35
SIDE MEMBER
35
SIDE MEMBER FRONT RIGHT L3907MM
35
SIDE MEMBER FRONT RIGHT L3727MM
35
SIDE MEMBER
38
SIDE MEMBER REAR RIGHT 3247MM
38
SIDE MEMBER
38
SIDE MEMBER
95
FRAME
110
FRAME PART935LG
110
FRAME , Replaced By: A6326601526
110
FRAME , UP TO IDENT NO. WKK 632131 13 000284 EXCEPT FOR WKK 632131 13 000278
110
PEDESTAL
113
SUPPORT
113
SUPPORT
116
SUPPORT
122
FRAME
122
SUPPORT
125
SUPPORT
128
STRUT BOTTOM L1160MM
131
SUPPORT BOTTOM 852LG
158
STRUT. SUPPORT
161
ROCKER PANEL BOTTOM
164
ROCKER PANEL CENTRAL
167
ROCKER PANEL TOP
