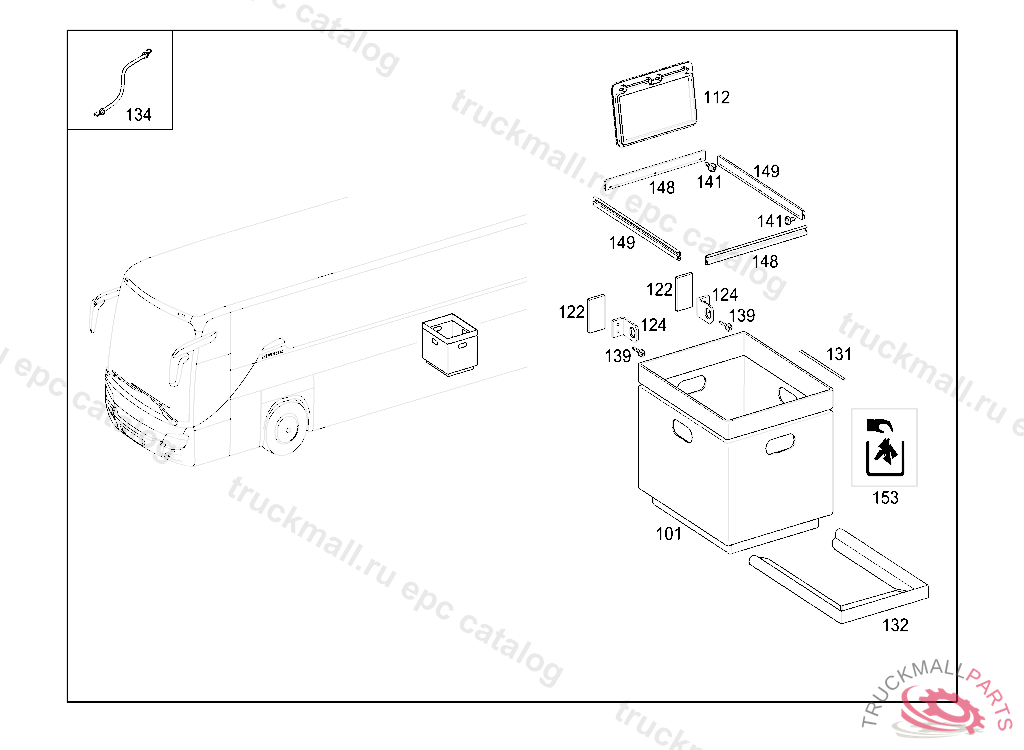

S 417 GT-HD 3-ACHSER - 632.133 - 84 TRUNKS AND CASES
Поз.
Артикул
Описание
101
CONTAINER
101
GARBAGE CONTAINER
112
HINGED DOOR LITTER-BIN
122
PLATE SIDE PANEL
124
ANGLE
131
RUBBER STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
132
ANGLE
134
ELASTIC BAND
134
BAND (RUBBER TENSIONING STRAP)
139
TAPPING SCREW MOUNTING PLATE 3.5X9.5
141
TAPPING SCREW3.5X22
148
ATTACHMENT ANGLE BRACKETLG410MM
149
ATTACHMENT ANGLE BRACKETLG510MM
153
KEYHOLE COVER LITTER-BIN
153
KEYHOLE COVER LITTER-BIN
999
SPRING COTTER
999
SPRING NUTDM 4
999
MOUNTING CLIP
999
ADHESIVE THREAD LOCK 50G
999
ELECTRICAL WIRING HARNESS FOR COVER
999
ELECTRICAL WIRING HARNESSFUER BUSADAPTER
999
ELECTRICAL WIRING HARNESS FOR INNER MEMBER
