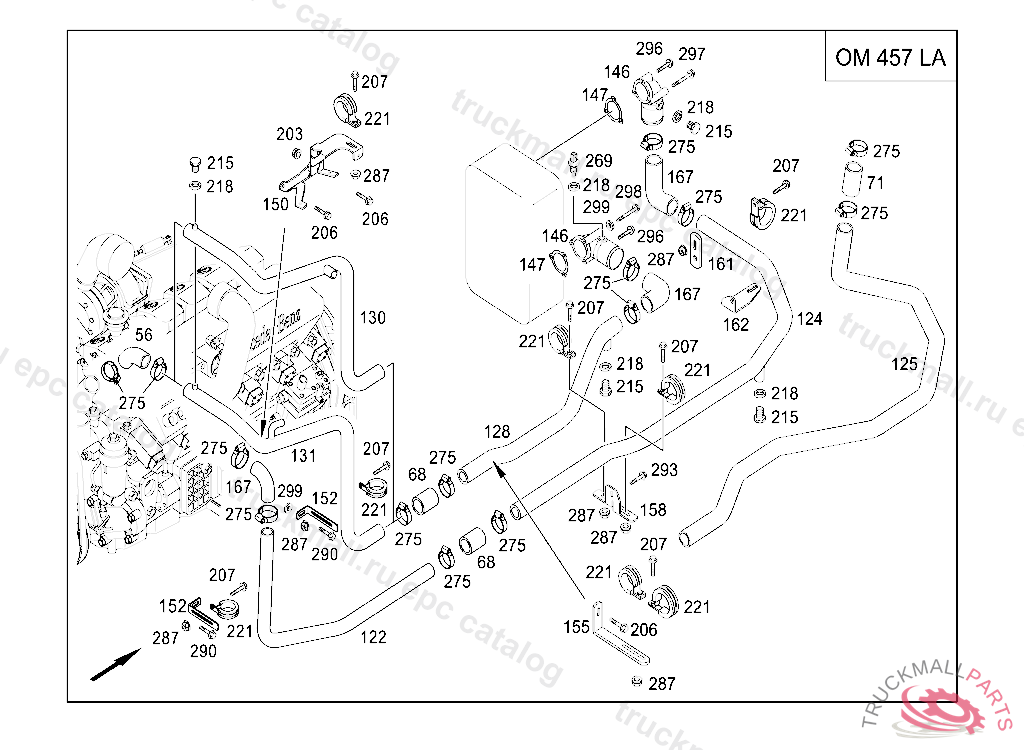

Поз.
Артикул
Описание
56
MOLDED HOSE ARC REDUCED 45 DEGREES 65/60MM
68
HOSE60 X 72 X 100 MM, TO BE ADAPTED DURING ASSEMBLY
68
HOSE COOLING WATER LINE TO COOLING WATER LINE
71
MOLDED HOSE NARROWED STRAIGHT SURFACE 65/60
122
COOLING WATER PIPE FEED D60MM
124
LINE FEED D60
125
LINE60MM
128
COOLANT PIPE RETURN D60
130
LINE. RETURN LINE60MM
131
LINE. RETURN LINE60MM
131
COOLING WATER PIPE RETURN
131
LINE RETARDER COOLING WATER RETURN 60MM,WKK 632131 13 000190
146
CONNECTION FITTING
147
GASKET
150
BRACKET
150
BRACKET , Replaced By: A6295013322
152
BRACKET
155
BRACKET
158
BRACKET
161
BRACKET
162
BRACKET
167
MOLDED HOSE 90 DEGREES 60/60MM
167
HOSE. RADIATOR HOSE ARC REDUCED 90 DEGREES 65/60MM, Replaced By: A0015013982
167
MOLDED HOSE ARC REDUCED 90 DEGREES 65/60MM, Replaced By: A0025012082
167
COOLANT HOSE 90 DEGREES 60/60MM, Replaced By: A6285017782
203
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
206
SCREW BRACKET TO CAB REAR PANEL M 8X20
206
HEXAGON HEAD BOLT. SCREW , Replaced By: N910143008016
206
HEXAGON HEAD BOLT. SCREW BRACKET MOUNTING M8 X 30
206
SCREWM 10X20
206
HEXAGON HEAD BOLTM8X85
206
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
207
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
215
SCREW PLUG FUEL TANK
215
SCREW PLUG, FILLINGM14X1,5
218
SEAL RINGTO 000 553 03 05,000 553 18 05,
221
CLAMP60/25RSGU
221
CLAMP60/25
221
CLAMP60/25MM, Replaced By: N000000006126
269
TEMPERATURE SENSOR RETARDER TEMPERATURE
275
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
275
CLAMP CONNECTION OF COOLING WATER LINES 55-75X13MM
287
NUT , Replaced By: N913023010002
290
SCREW. HEXAGON HEAD BOLT BRACKET MOUNTING M14X1.5X25,V 207570
290
SCREW PICK-UP PLATE BRACKET ON LONGITUDINAL MEMBER M 14X25
293
SCREW BRACKET TO SIDE MEMBER M10X35
296
HEXAGON HEAD BOLT. SCREW BRACKET MOUNTING M8 X 30
296
HEXAGON HEAD BOLTM8X90
296
SCREW BUMPER TO REAR CROSS MEMBER M 8X50
297
HEXAGON HEAD BOLTM8X85
298
HEXAGON HEAD BOLTM8X90
298
SCREWM 10X20
298
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M16X1.5X30
299
WASHER BRACKET MOUNTING
299
WASHER PUMP TO CONSOLE
