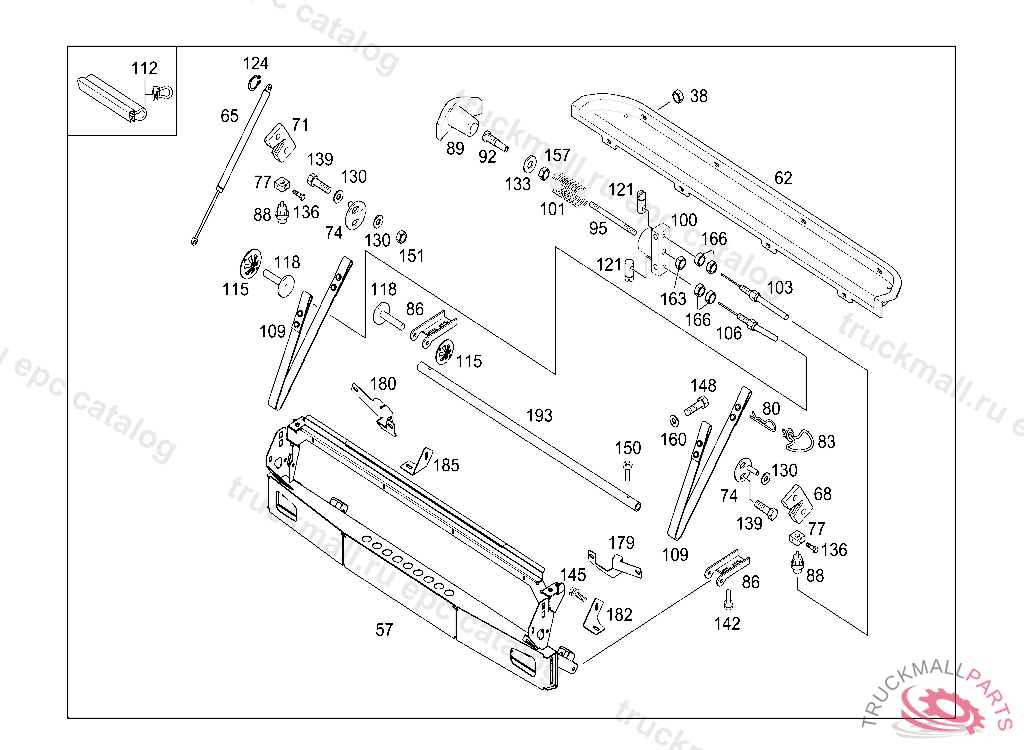

Поз.
Артикул
Описание
38
NUT-AND-WASHER ASSEMBLY ANTENNA AT BRACKET M4
38
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
38
NUT , Replaced By: N913023006001
57
SUPPORTING FRAME
62
PANELLING AIR DUCT
65
MUFFLER
68
LOCK LEFT
71
LOCK RIGHT
74
STRIKER
77
CLIP
80
LOCK
83
CORD
86
HINGE BASE FRAME
88
SLEEVE
89
LEVER
92
SLEEVE
95
ROD
100
LINK
101
SPRING
103
STRAP RIGHT 1550MM
103
STRAP
106
STRAP
106
STRAP LEFT 2750MM
109
RETAINING STRAP LEFT LG460
109
RETAINING STRAP
109
RETAINING STRAP , Replaced By: A0008800015
112
RUBBER SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
115
CLAMPING DISC
118
PIN
121
NIPPLE
124
LOCK RING PUSH ROD TO PEDAL
130
WASHER BRACKET TO CAB REAR PANEL
133
WASHER BRACKET TO FUEL TANK SUPPORT
136
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
139
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
142
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
145
SCREW BUMPER TO REAR CROSS MEMBER M 8X50
148
CYLINDRICAL HEAD SCREW. SCREW HOUSING,TOP M6X30
148
SCREW CONTROL SHAFT TO ENGINE
150
SHEET METAL SCREW BRACKET TO FLOOR PLATE
151
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
157
NUT , Replaced By: N913023010002
160
WASHER COMPRESSED AIR LINE TO BRACKET
163
NUT RELAY TO BRACKET M5
166
NUT-AND-WASHER ASSEMBLY ANTENNA AT BRACKET M4
179
ATTACHMENT ANGLE BRACKET
180
ATTACHMENT ANGLE BRACKET RIGHT
182
ATTACHMENT ANGLE BRACKET LEFT AIR DUCT
185
ATTACHMENT ANGLE BRACKET RIGHT AIR DUCT
193
TUBE
193
TUBE
999
CLAMP
999
DAMPING DISK
999
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
