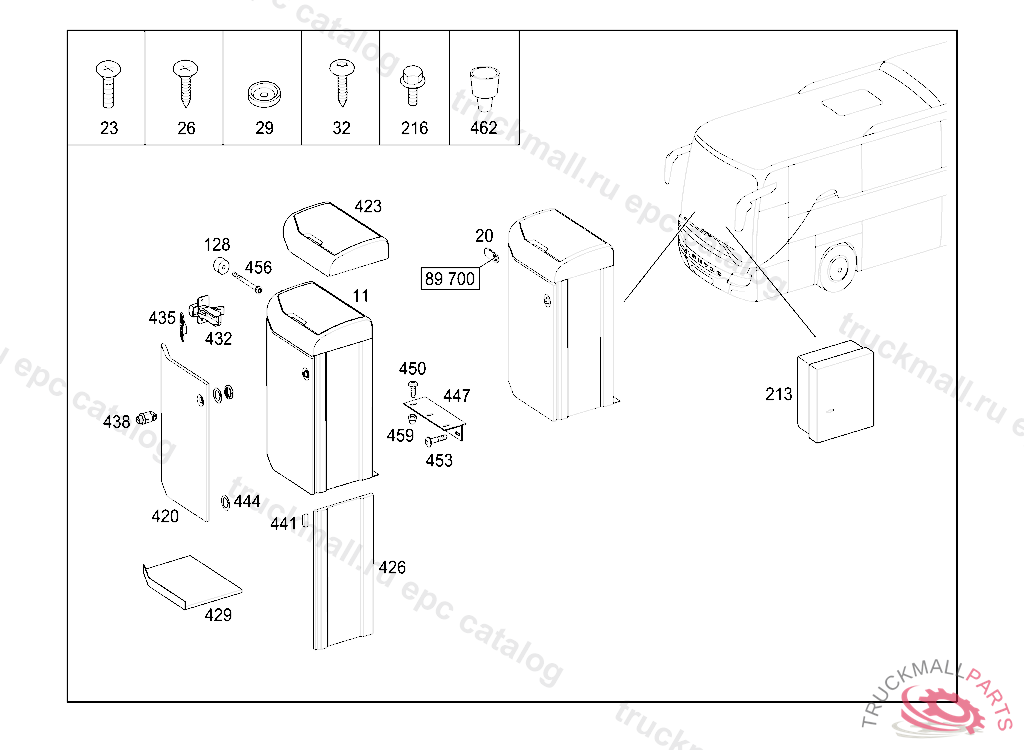

Поз.
Артикул
Описание
11
WARDROBE DRIVER'S WARDROBE
11
WARDROBE
11
WARDROBE DRIVER'S WARDROBE
11
DRIVER'S CABINET TOUR GUIDE CABINET FUER KAFFEEMASCHINE
11
WARDROBE
11
DRIVER'S CABINET TOUR GUIDE CABINET
11
WARDROBE DRIVER'S WARDROBE
20
LATCH PLATE
23
WOOD SCREW3 X 1 MM
26
TAPPING SCREW4.8X38
29
WASHER
32
TAPPING SCREW4,8X60
128
RUBBER BUFFER
128
STOP BUFFER
213
VALUABLES COMPARTMENT
216
SCREWM 10X20
420
CABINET DOOR
420
CABINET DOOR
423
COVER
423
HOUSING COVER
426
CARPET. PLYWOOD10MM, ABMESSUNG ANGEBEN
429
PLYWOOD , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
429
CABINET BOTTOM
429
CABINET BOTTOM
432
HINGE
432
HINGE DEGREES: 170
435
PLATE
438
LOCK
441
END PIECE
444
BUFFER STOP
447
BRACKET
450
SCREWM 8X22, T40
453
SCREWM8X40
456
SCREWM8X75T40
456
HEXALOBULAR BOLTM 8 X 100
459
NUT WITH COVER M8
462
FILLER NECK
999
ELECTRICAL WIRING HARNESS FOR INNER MEMBER
999
ELECTRICAL WIRING HARNESSFUER BUSADAPTER
999
ELECTRICAL WIRING HARNESS FOR COVER
999
ADHESIVE THREAD LOCK 50G
999
MOUNTING CLIP
999
SPRING NUTDM 4
999
SPRING COTTER
