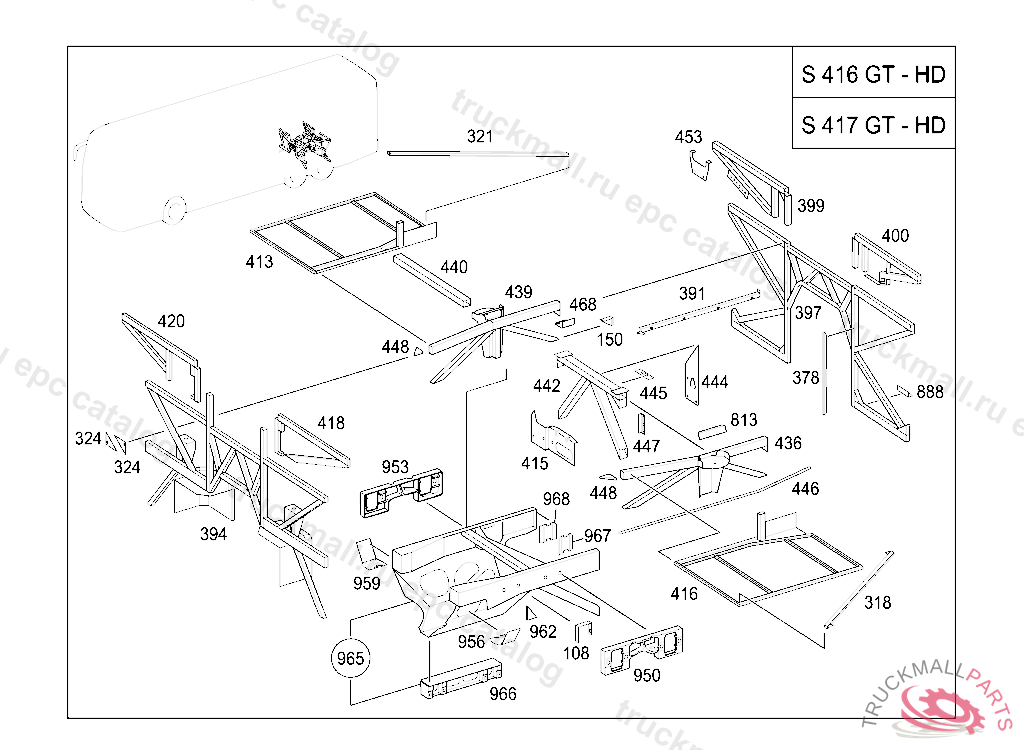

S 416 GT-HD 3-ACHSER - 632.134 - 61 SUBSTRUCTURE

Поз.
Артикул
Описание
108
A6296125124
BRACKET
150
A6296122325
REINFORCEMENT
318
A6296100927
DIAGONAL GIRDER
321
A6296101027
DIAGONAL GIRDER
324
A6326123611
FASTENING PLATE
378
A6296160193
SUPPORT ANGLE
391
A6326112082
ANGLE
394
A6326102217
CROSS MEMBERQT 8
394
A6326100417
CROSS MEMBER8
397
A6326102317
CROSS MEMBERQT NLA
399
A6326100932
CONNECTION RIGHT
400
A6326100832
CONNECTION LEFT
413
A6296101923
FLOOR CARRIER RIGHT
413
A6326105407
FLOOR CARRIER RIGHT
413
A6296106810
SIDE MEMBER RIGHT
415
A6326120536
BRACKET
416
A6296104123
FLOOR CARRIER LEFT
416
A6326105507
FLOOR CARRIER LEFT
416
A6296106410
FLOOR CARRIER LEFT
418
A6326101532
CONNECTION LEFT
420
A6326101732
CONNECTION RIGHT
436
A6296102007
LONGITUDINAL MEMBER LEFT
439
A6296102107
LONGITUDINAL MEMBER
440
A6296100232
CONNECTION
442
A6296102207
FRAME GIRDER
444
A6326124024
BRACKET
445
A6296115511
PLATE
446
A6296117514
BRACKET RIGHT
447
A6296110682
ANGLE BEHIND REAR AXLE
448
A6296112016
REINFORCEMENT
453
A6326100236
BRACKET
468
A6326101200
BRACKET
813
A6326110851
WEB , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 21.09.2009
888
A6343178340
BRACKET
950
A6286110547
TAKE-UP DEVICE
953
A6286110647
TAKE-UP DEVICE
956
A6296119756
PLATE
959
A6296119856
PLATE
962
A6296116156
PLATE
965
A6296100430
CONSOLE
966
A6296101130
CONSOLE
967
A6296113051
WEB
968
A6296112951
WEB
