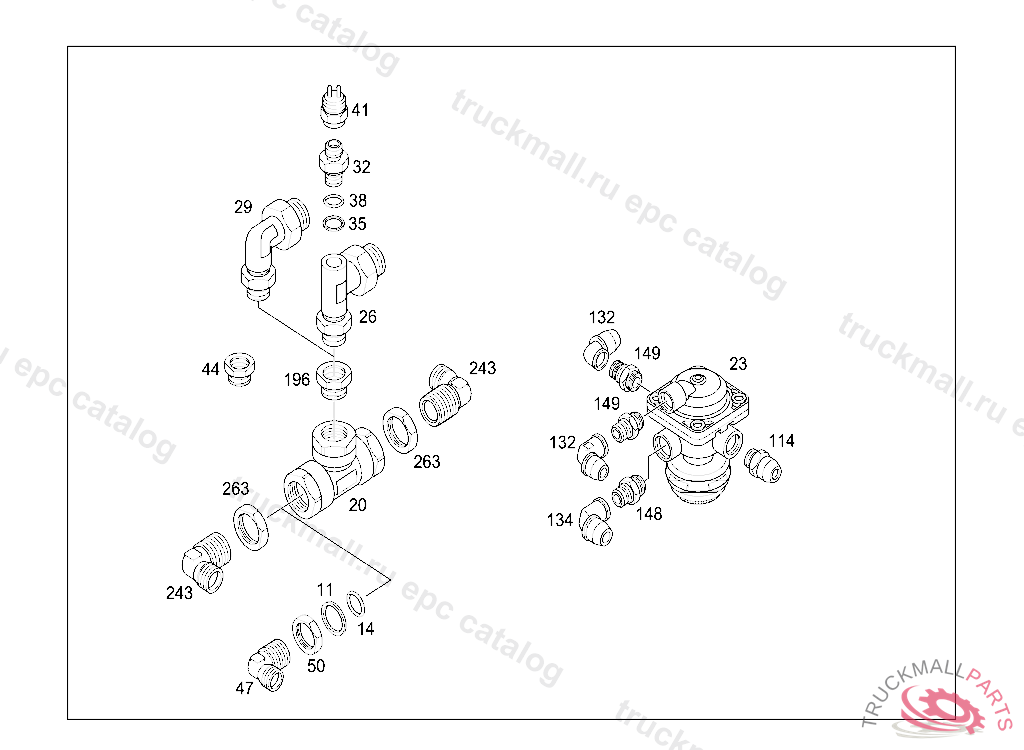

Поз.
Артикул
Описание
11
THRUST RING CHECK VALVE TO AIR RESERVOIR
11
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
14
SEAL RING20.3X2.4
20
VALVE TWO-WAY VALVE BOSCH,ASR
20
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0024299544
23
PRESSURE CONTROL VALVE. RELAY VALVE PARKING BRAKE WABCO, REPAIR IMPOSSIBLE
26
T-FITTING
29
ELBOW FITTING
32
FITTING
35
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
38
SEAL RING RIGHT SPRING-LOAD ACCUMULATOR 10X2.2
41
SWITCH COMPRESSOR
47
FITTING BRAKE HOSE TO BRAKE CALIPER M18X1.5/M22X1.5
114
FITTING12X1.5/M22X1.5 RAUFOSS
132
ELBOW FITTINGP5/12X1.5/90GR
134
ELBOW FITTINGP5/8X1MM/90GR
148
FITTINGP5/M16X1.5
149
FITTINGP5/M22X1.5 RAUFOSS
196
REDUCTION FITTING. THREADED UNION WITH O-RING M22X1.5/M16X1.5 RAUFOSS
243
ELBOW FITTINGM18X1.5/M22X1.5/M16X1.5 RAUFOSS
263
NUT WITH O-RING M22X1.5 RAUFOSS
