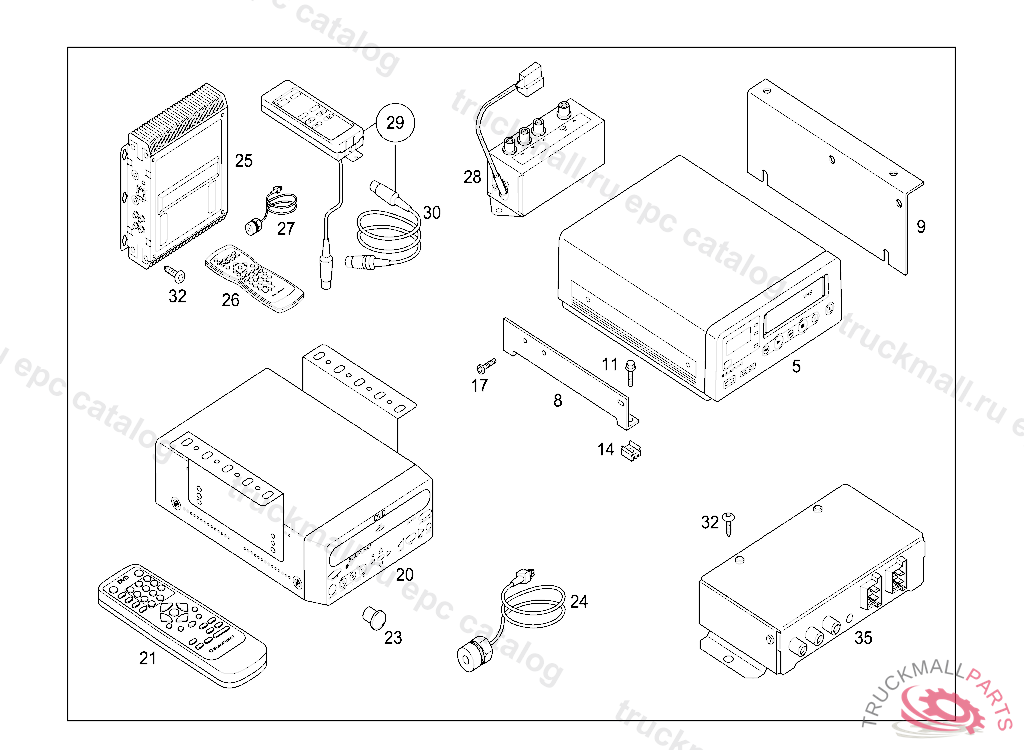

S 416 GT-HD 3-ACHSER - 632.134 - 82 ELECTRICAL SYSTEM
Поз.
Артикул
Описание
5
VIDEO RECORDER ,237069
8
BRACKET
9
BRACKET
11
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
14
CLIP FASTENERM 5
17
SCREW, SPECIAL SHAPEM 4X12_T20
20
DVD PLAYERDVP 01C
21
REMOTE CONTROLDVP 01C
23
LIGHT SENSORDVP 01C
24
EYE
25
TUNERDVB-T M42
25
TV TUNER
25
TUNER
25
TV TUNER VIDEO-SYSTEM
26
REMOTE CONTROL
26
REMOTE CONTROL
27
TRANSMITTER SENDER
27
CABLE HARNESS INFRARED RECEIVER L5M
28
AMPLIFIER
29
REMOTE CONTROL
30
EXTENSION TV TUNER
30
ELECTRIC CABLE
30
ANTENNA LINE TV TUNER
32
SHEET METAL SCREW BRACKET TO FLOOR PLATE
32
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
32
TAPPING SCREW
35
INSULATING HOSE
35
SWITCH
999
EL. CABLE TV TUNER TO INFRARED EYE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
PIN BUSHING HOUSING 4-POLE
999
PIN BUSHING
