Поз.
Артикул
Описание

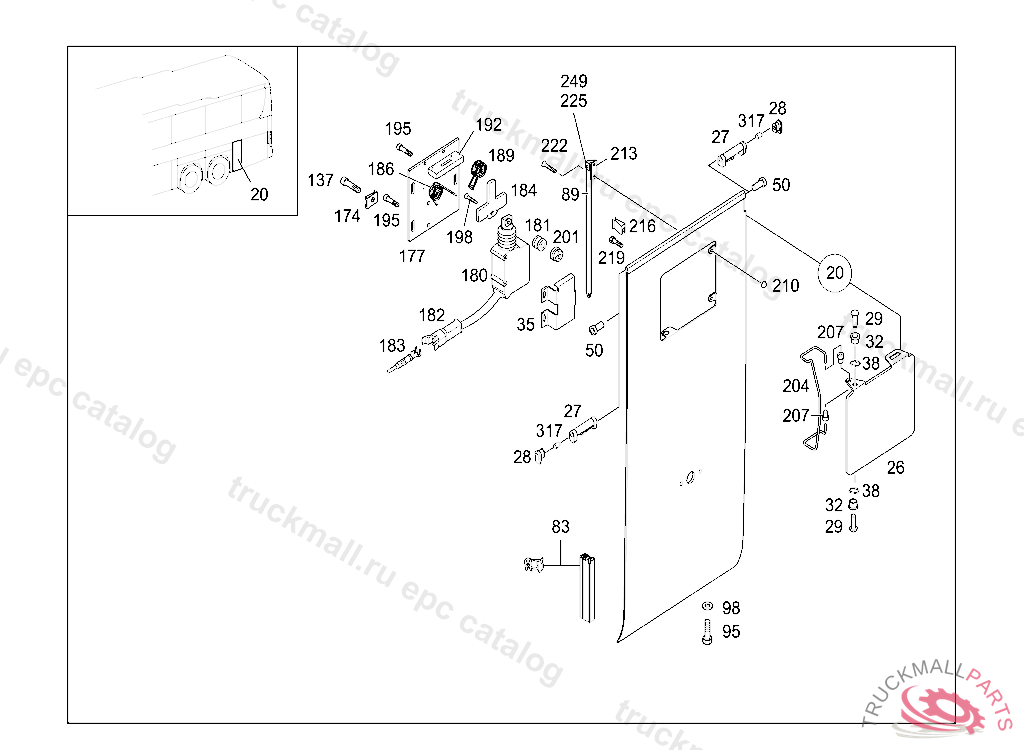

26
FLAP
29
PIN TANK FLAP
32
BUSHING TANK FLAP
35
BRACKET
38
LOCK PLATE ,042 002927- 012466 EXCEPT FOR: 012343- 012366, 012369- 012376, 012378- 012387, 012389- 012412,012414- 012422, 012424- 012444, 012446- 012465
50
BUSHING
83
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
89
RAIL
95
SCREW , Replaced By: N910143008002
98
WASHER
137
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
137
SCREW , Replaced By: N914146006102
174
LOCK. NUT , Replaced By: A0039941745
177
BRACKET
180
ELECTRIC MOTOR
181
RUBBER SLEEVE
182
PIN BUSHING HOUSINGTO A 000 820 19 08
183
CONTACT SPRING
184
LATCH
186
SPRING
189
SPRING
192
KEY GUIDE
195
TAPPING SCREW3.5X16
198
SCREWM6X16
201
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
204
SPRING
207
BUSHING
210
RUBBER BUFFER8X16 MM
213
ANGLE
216
SPRING
219
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
219
TAPPING SCREW BRACKET TO SUPPORT
222
TAPPING SCREW BRACKET TO SUPPORT
222
SCREW BRACKET TO COVERING
225
FUSE JACKET TUBE WIRING HARNESS FASTENING
249
SPRING WASHER LICENSE PLATE TO BRACKET
317
DIFFERENTIAL PINION SHAFT
999
LOOM TIE
