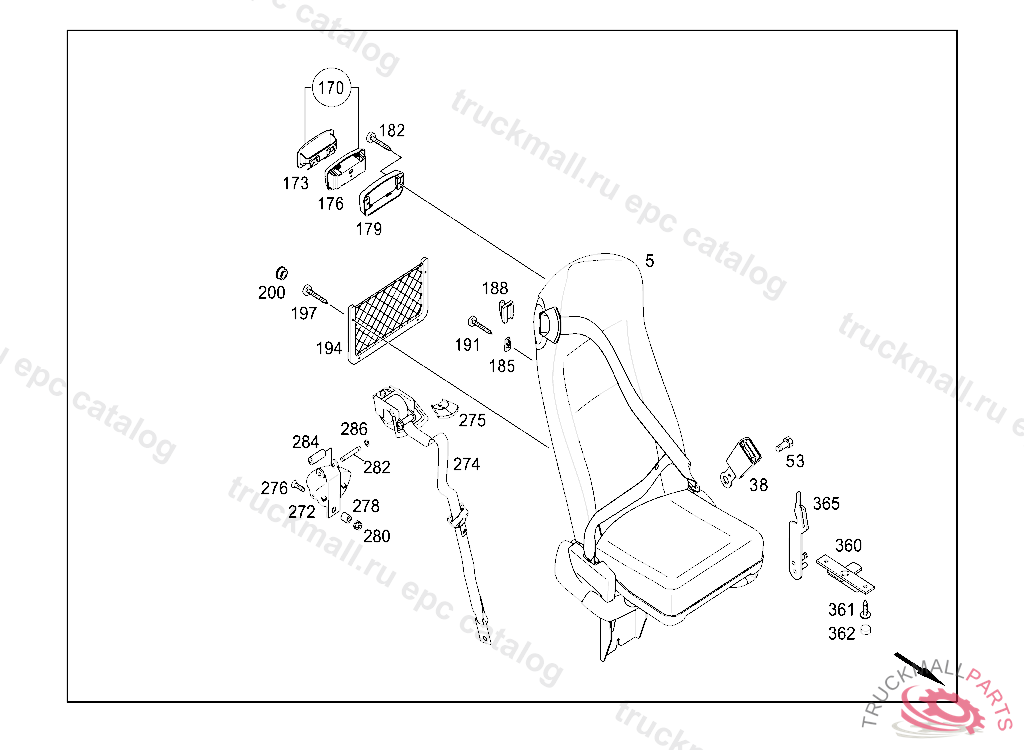

S 419 GT-HD - 632.138 - 91 FRONT SEATS
Поз.
Артикул
Описание
5
FRONT SEAT CO-PILOT SEAT,GEAR SIDE
5
FRONT SEAT CO-PILOT SEAT,WALL SIDE
38
FASTENER
53
SCREWM 10 X 14
170
ASHTRAY
173
COVER
176
HOUSING
179
FRAME
182
SCREW2,9X17,5MM
185
BRACKET
188
CLOTHES-HOOK
191
TAPPING SCREW3,5X16MM
194
LUGGAGE NET
197
SCREW2,9X17,5MM
200
CAP
272
SUPPORT
274
SEAT BELT RIGHT
274
SAFETY BELT RIGHT
275
GUIDE RAIL
276
SCREW W HEXAGON SOCKETM 8 X 16
278
BUSHING
280
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
282
PIN
284
BUSHING
286
WASHER
360
LOCK
361
SHEET METAL SCREW. SCREWST25X 6 T20
362
LOCKING CAP
365
LEVER
