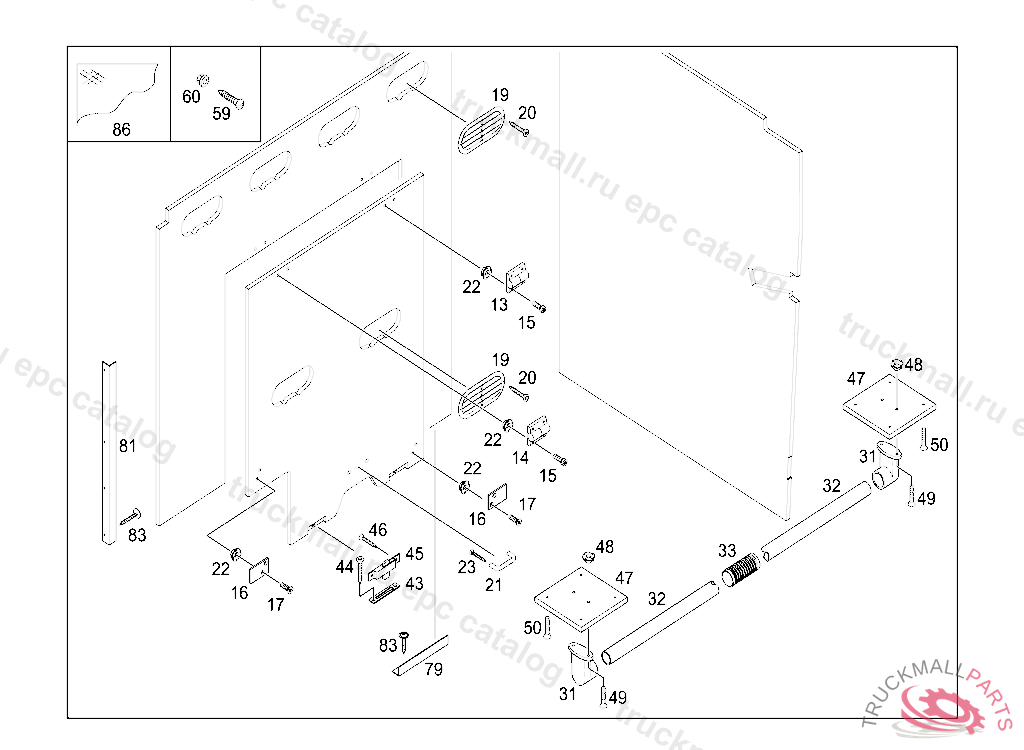

S 419 GT-HD - 632.138 - 81 APPOINTMENTS
Поз.
Артикул
Описание
13
HINGE
14
HINGE
15
HEX. SKT. CAP BOLTM5X16MM
16
PLATE
17
SCREWM5 X 16 MM
19
COVERING
20
TAPPING SCREW2,9X13
21
CLAMP
22
THREADED CHUCKCODE 844
23
TAPPING SCREW. SCREW FASTENING SOLONOID SWITCH 3.5X32MM
31
STAY
32
TUBE
32
PIPE PIECE
33
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
43
STRIKER PLATE
44
TAPPING SCREW3,5X13
45
LOCK
46
TAPPING SCREW3,5X13
47
REINFORCEMENT
48
NUT
49
SCREWM6X16
50
TAPPING SCREW. SCREW
59
TAPPING SCREW DRIVER'S PARTITION PANEL 3,5X25MM
59
TAPPING SCREW3.5X16
60
WASHER W CHAMFER FABRIC GUARD PLATE
79
ANGLE
81
ATTACHMENT ANGLE BRACKET
83
TAPPING SCREW RAIL
86
CARPET , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
