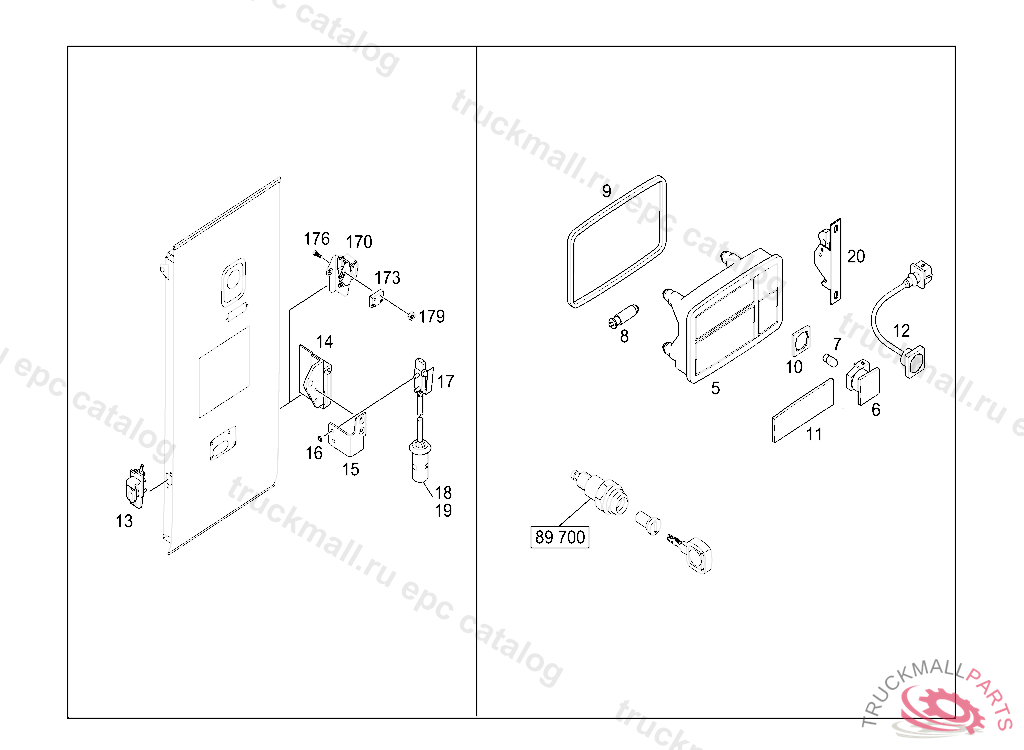

S 419 GT-HD - 632.138 - 75 OUTSIDE FLAPS

5

HANDLE MECHANICAL LOCKING, W/O CARRIER,WITH SIDE LAMP LED, FOR LUGGAGE FLAP

5

HANDLE CENTRAL LOCKING, W/O CARRIER WITH SIDE LAMP LED

8

CYLINDER

9

SEAL

11

REFLECTOR

12

LAMP

13

LOCK

14

LOCK

14

LOCK

15

BRACKET

15

BRACKET , Replaced By: A6297545614

16

LOCK PLATE , A 372464 ALSO INSTALLED ON A 372469,A 372476,A 372477,A 372483,A 372490,A 372493,A 372505,A 372517,A 372519,A 372525,A 372539,A 372548,A 372572,A 372614, A 373051.EXCEPT FOR A 371956 F 348473

17

SWITCH

18

SOCKET HOUSING. PLUG

19

ROUND PIN BUSHING

19

PIN BUSHING , Replaced By: A0145457726

170

LOCK

173

MICRO-SWITCH

176

SCREW. HEXAGON HEAD BOLTM2X12

179

HEXAGON NUTM2
