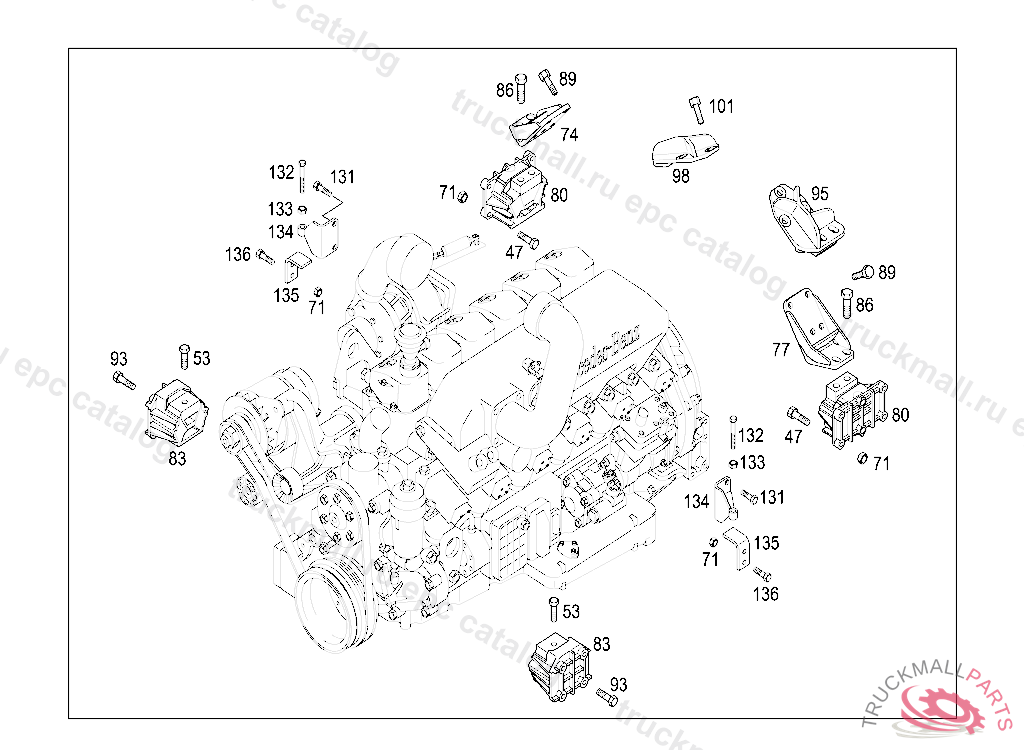

Поз.
Артикул
Описание
47
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X45
47
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
53
HEXAGON HEAD BOLT STEERING BRACKET TO FRAME M18X1.5X50
53
BOLT AND WASHER ASSY.
53
HEXAGON HEAD BOLT. SCREW PLATE TO SIDE MEMBER M18 X 1.5 X 45
71
HEXAGON NUTM14X1.5
71
HEXAGON NUT. NUT MOUNTING PARTS
74
ENGINE SUPPORT RIGHT FRONT
77
ENGINE SUPPORT LEFT FRONT
80
RUBBER MOUNTING FRONT
83
ENGINE MOUNTING REAR
86
HEXAGON HEAD BOLT REAR AXLE SHAFT TO HUB M18X1.5X40
86
SCREWM 18 X 1,5 X 35
86
SCREW STRUT TO BEARING BRACKET M 18X55
89
SCREWM 18 X 1,5 X 35
89
HEXAGON HEAD BOLT REAR CAB SUSPENSION ON FRAME BRACKET
93
SCREW PICK-UP PLATE BRACKET ON LONGITUDINAL MEMBER M 14X25
93
SCREW. HEXAGON HEAD BOLT BRACKET MOUNTING M14X1.5X25,V 207570
93
HEXAGON HEAD BOLT SUPPORT TO SIDE MEMBER M18X1.5X100
95
ENGINE SUPPORT RIGHT FRONT
98
ENGINE SUPPORT LEFT FRONT
101
HEXAGON HEAD BOLT REAR AXLE SHAFT TO HUB M18X1.5X40
101
HEXAGON HEAD BOLT CROSSMEMBER AND BEARING BRACKET TO FRAME M18X1.5X40
