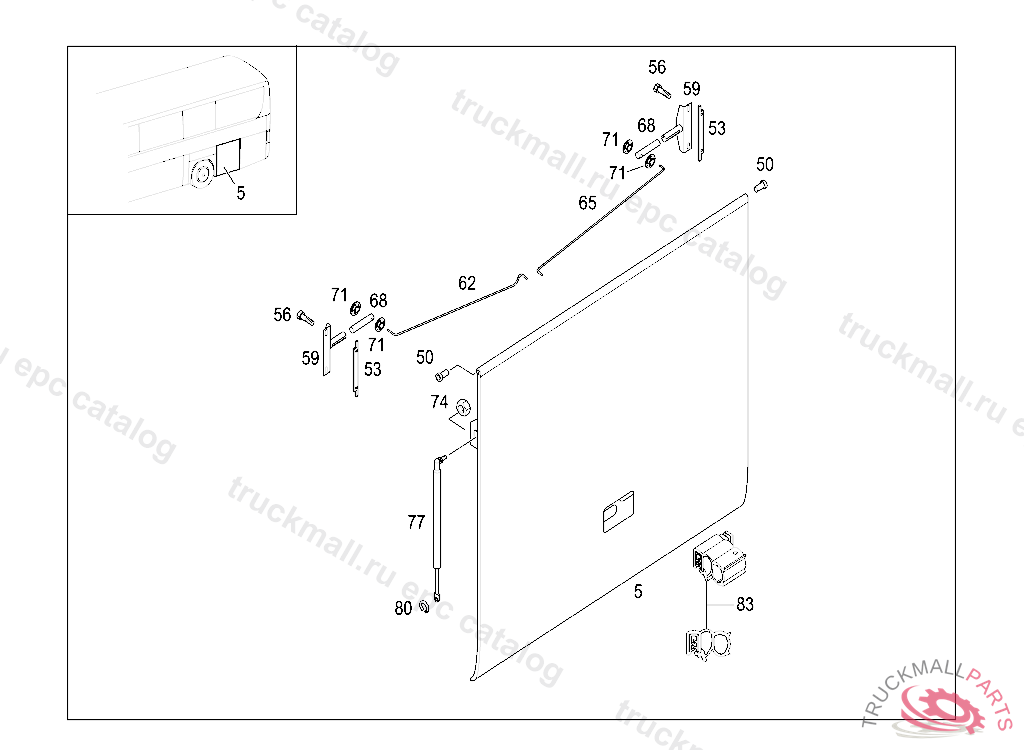

S 416 GT-HD 2-ACHSER - 632.139 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
5
FLAP SWIVELLING FLAPS OHNE LEISTE, L1120 MM
5
FLAPOHNE LEISTE
5
HINGED DOOR1120MM
50
BUSHING
53
PLATE
56
SCREW. HEXAGON HEAD BOLT RELAY TO BRACKET M5X16
59
GUIDE
62
STRUTL535 MM
65
STRUTL414 MM
68
PIN
71
LOCK
74
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
77
SPRING PNEUMATIC SPRING 320 N
77
SPRING PNEUMATIC SPRING 420 N
80
LOCK RING
83
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
83
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
