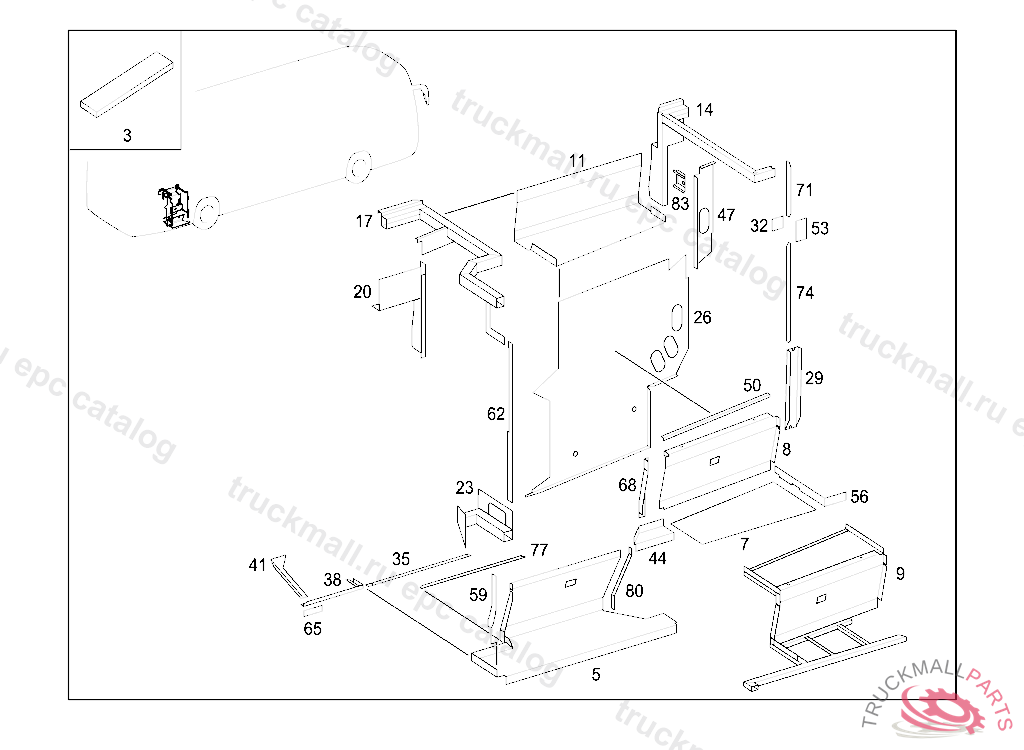

S 416 GT-HD 2-ACHSER - 632.139 - 66 INSTALLATIONS

Поз.
Артикул
Описание
3
A0029870033
RUBBER SECTIONMAVATOR SK 2 X 1 / L1000 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
5
A6326608828
FOOTPLATE BOTTOM
5
A6326606628
ROCKER PANEL BOTTOM
7
A6326860060
STEP CENTRAL
8
A6326605930
SUPPORT CENTRAL
9
A6326606130
BEAM CENTRAL
11
A6326606528
ROCKER PANEL TOP
14
A6326605422
FRAME FRONT
17
A6326605522
FRAME REAR
20
A6326600116
REINFORCEMENT REAR
23
A6326604730
SUPPORT
26
A6326600012
ANGLE
29
A6326100712
ANGLE
32
A6326662011
PLATE
35
A6326660213
ANGLE
38
A6326660313
ANGLE
41
A6326660413
ANGLE
44
A6326660813
ANGLE
47
A6326661013
ANGLE
50
A6326661813
ANGLE
53
A6276410713
PLATE
56
A6326662213
ATTACHMENT ANGLE BRACKET
56
A6326661513
ANGLE
59
A6326661011
PLATE
62
A6326661611
PLATE
65
A6326662111
PLATE
68
A6326662316
REINFORCEMENT
71
A6326661711
PLATE
74
A6326661811
PLATE
77
A6326662113
ATTACHMENT ANGLE BRACKET
80
A6326662616
REINFORCEMENT
83
A6326123531
CONSOLE
