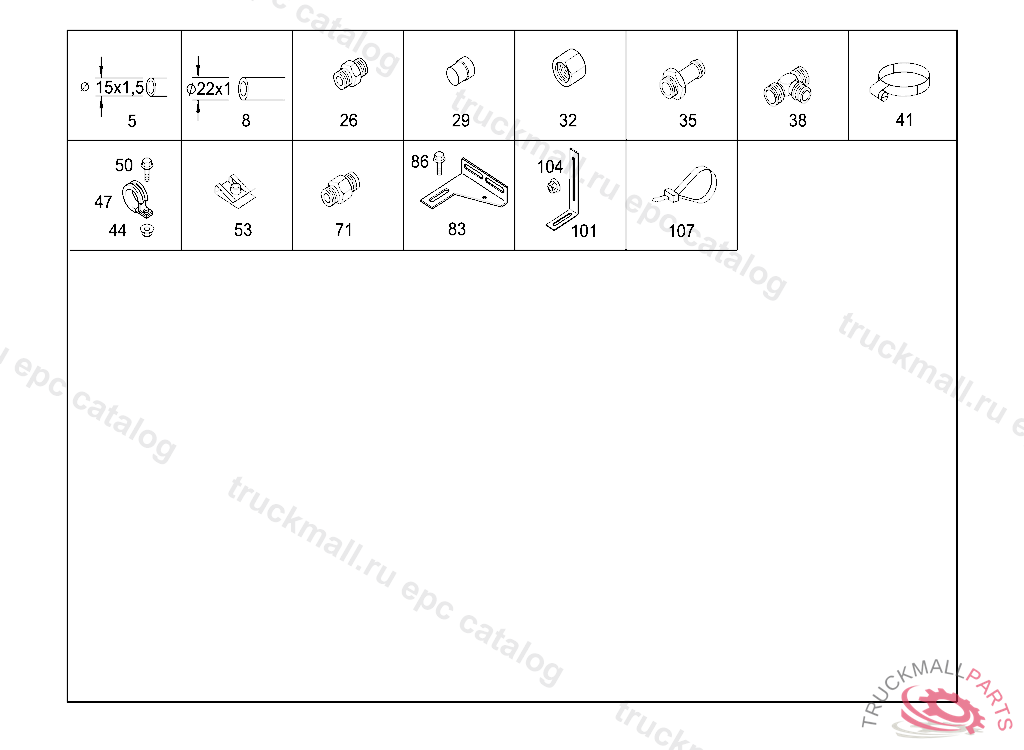

Поз.
Артикул
Описание
5
TUBE NIROSTA 15X1,5MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
8
LINE BRASS 22X1MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
26
FITTING
26
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
29
GLAND (DELIVERY AND SUCTION LINE) BL15
32
NUT LINE CONNECTIONS AL 15
35
CONNECTOR (THROTTLE VALVE)
38
FITTING
41
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
44
NUT BRACKET TO FIRE WALL
47
MOUNTING CLAMP22/15
47
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RSGU 20/15
47
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
47
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
47
CLAMP22/15, Replaced By: A0019951442
47
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
50
SCREW , Replaced By: N914146006102
50
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
53
LOCK. NUT , Replaced By: A0039941745
71
FITTING AT STEERING GEAR
71
SCREW-IN FITTING , Replaced By: N003901015005
83
BRACKET
86
SCREW , Replaced By: N910143008000
101
BRACKET
101
BRACKET50X81MM
101
BRACKET80X153 MM
104
NUT HORN TO BRACKET M8
107
CABLE TIE , Replaced By: A0049971890
