Главная
›
Mercedes
›
BUS
›
TRAVEGO RHD
›
632.245
›
47 FUEL SYSTEM
›
180 FUEL TANK IL. 2
Mercedes N913023005002 - Гайка М5
TRAVEGO RHD 632.245

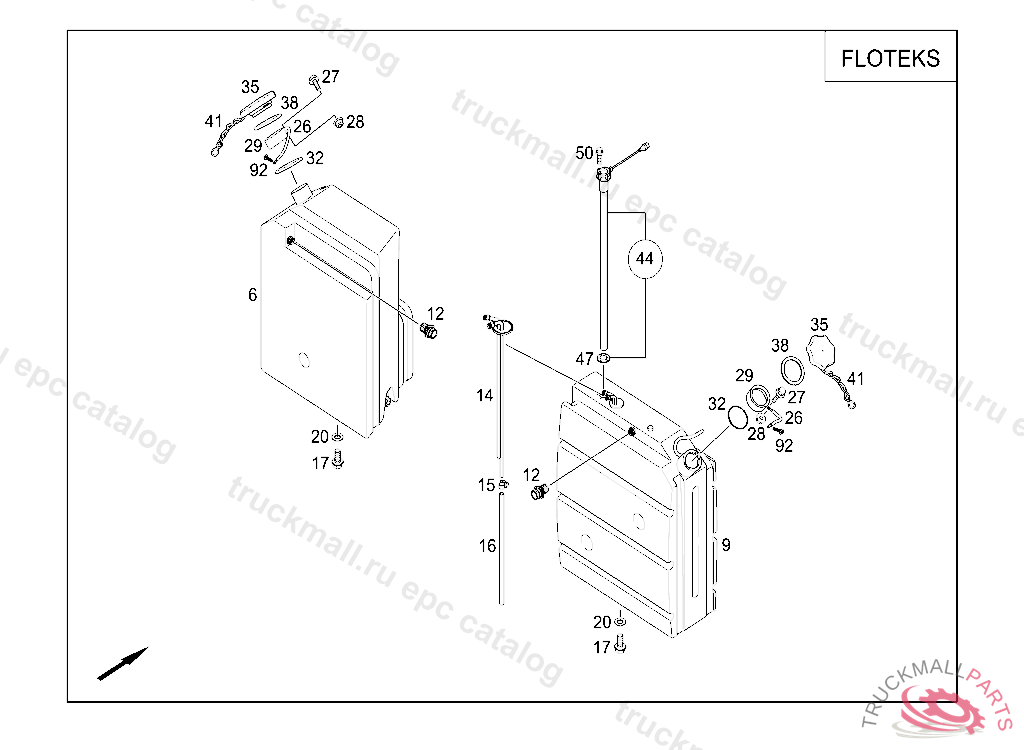

47 FUEL SYSTEM - 180 FUEL TANK IL. 2
Поз.
Артикул
Описание
6
A6324702701
FUEL TANK LEFT FLOTEKS
9
A6324702202
FUEL TANK RIGHT FLOTEKS
12
A6324710124
FEED CONNECTION
14
A6294700094
SUPPLY UNIT
15
N000000000665
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
16
A0009872927
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
17
N000000005518
HEXAGON HEAD BOLT BRACKET TO FRAME M14X1.5X30
17
A0009909117
SCREWTO A 632 470 17 02 M14X1.5
20
A0209972545
O-RING
20
A6324710179
SEAL RINGFLOTEKS
26
A1155400741
GROUND STRAP , Replaced By: A1155400341
27
N910105005000
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
28
N913023005002
NUT RELAY TO BRACKET M5
29
A0009971564
FITTING
29
A6329970064
FITTINGFLOTEKS
32
A0129978945
SEAL RING95X4MM
32
A6329970145
SEAL RINGFLOTEKS 94X2
35
A0004702305
FILLER CAP
38
A0004710579
SEAL RING TO FILLER CAP
41
A0009930179
RETENTION CHAIN TO FILLER CAP
44
A6325400117
SENDER UNIT FUEL TANK L985MM
47
A0004710779
SEAL RING
50
N910105005005
HEXAGON HEAD BOLT SWITCH TO CAB FLOOR M 5X35
92
A0009902029
SCREW W SOCKET DRIVEM6X25 T30
