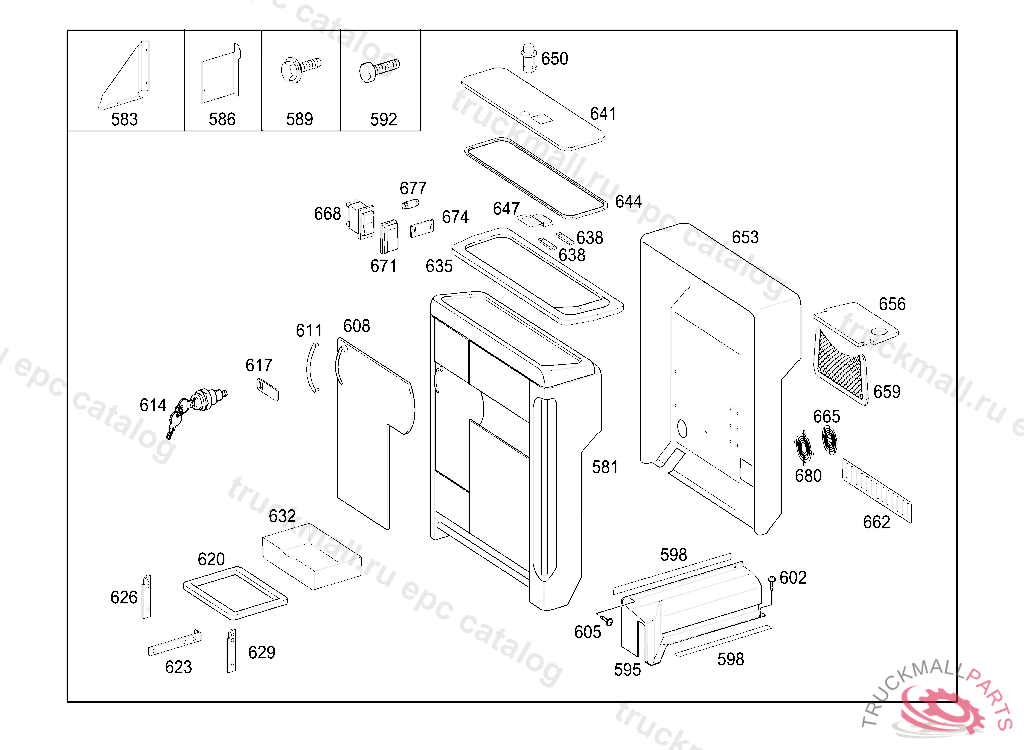

TRAVEGO RHD - 632.245 - 84 TRUNKS AND CASES
Поз.
Артикул
Описание
581
MINIATURE KITCHENFOB595
583
COVER
586
COVER
589
SCREWM8X40
592
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
595
COVERING
598
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
602
TAPPING SCREW4.5X13
605
HEXALOBULAR BOLTM6X16
608
SLIDING DOOR
611
BOW-TYPE HANDLE
614
LOCK CYLINDER
617
BOLT
620
HINGED DOOR
623
CHECK STRAP
626
FIXTURE
629
FIXTURE
632
STORAGE SPACE
635
COVER FRAME DEEP FREEZER
638
HINGE PIN
641
HINGED DOOR DEEP FREEZER
644
GASKET DEEP FREEZER
647
ANGLE FOR FLAP
650
FASTENER
653
REAR WALL
656
FOLDING TABLE WITH HOLE
659
LUGGAGE NET
662
AIR BAFFLE
665
TRIM RING
668
SWITCH
671
CAP
674
INTERIOR LAMP
677
BULB
680
GRILLE
999
MINIATURE KITCHEN
999
KITCHENETTE
999
KITCHENETTE
999
SWITCH
999
CONTROL UNIT
999
CONTROL UNIT CENTRAL LUBRICATION
999
CABLE HARNESS
999
CONNECTOR
999
HOSE SILICONE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
FITTING
999
THROTTLE
999
WASHER
999
CLIP
999
CONTAINER WATER RESERVOIR
999
CONTAINER
999
BRACKET LEFT
999
VALVE
999
CUP DISPENSER
999
CUP HOLDER
999
COVERING
999
TAKE-UP DEVICE
999
HINGE
999
FITTING ELBOW FITTING
999
PLATE
999
HEATING ELEMENT
999
BOILER
999
BOILERVST
999
CONTINUOUS-FLOW HEATER
999
CONTINUOUS-FLOW HEATER
999
BOILER
999
CLUTCH
999
CABLE HARNESS
999
COVERING ASHTRAY
