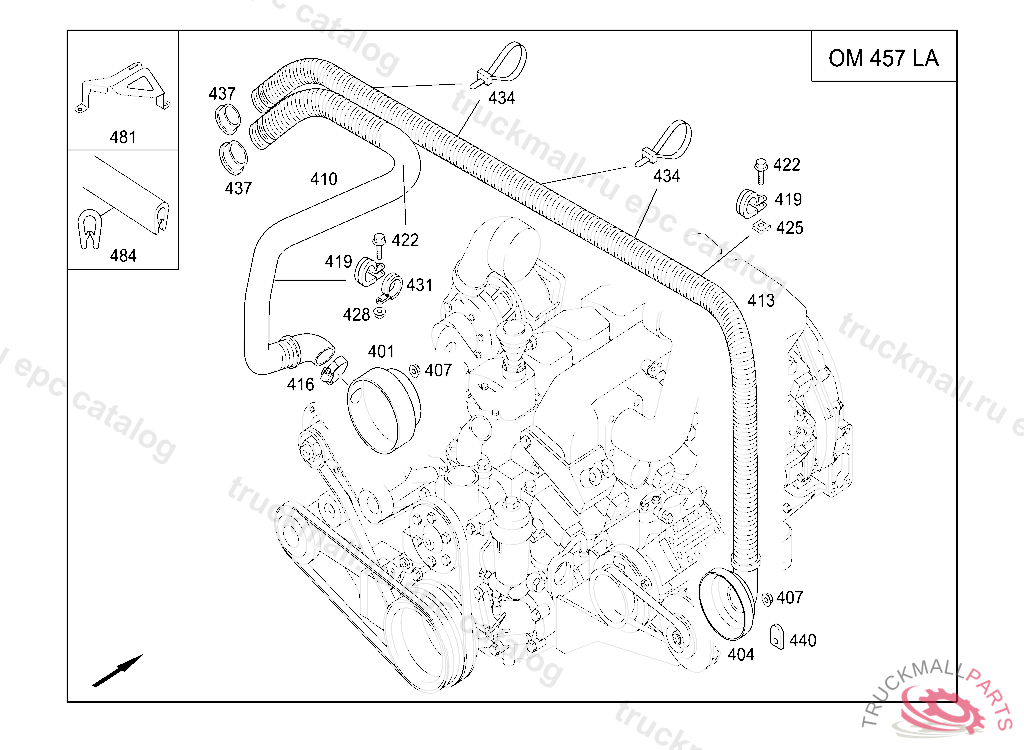

Поз.
Артикул
Описание
401
COVER
404
COVER
407
NUT , Replaced By: N913023006001
410
SUCTION HOSE1485MM
410
SUCTION HOSE1200MM
410
HOSE1200MM
410
HOSE (INTAKE HOSE) 1485MM
413
HOSE2385MM
413
SUCTION HOSE2385MM
416
CLAMP CONNECTION OF COOLING WATER LINES 55-75X13MM
419
CLAMP76-25 W3 RSGU
422
SCREW , Replaced By: N910143008002
422
SCREWM 10X20
425
NUT
425
NUTM8
428
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
431
CLAMP60/25
434
CABLE STRAP7.8X465
434
CABLE TIE LINE MOUNTING 375X8.4MM
437
PROTECTIVE GRILLE ALTERNATOR AIR INTAKE
440
CABLE GROMMET. GASKETTO 011 154 50 02
481
BRACKET
484
EDGE GUARD SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
