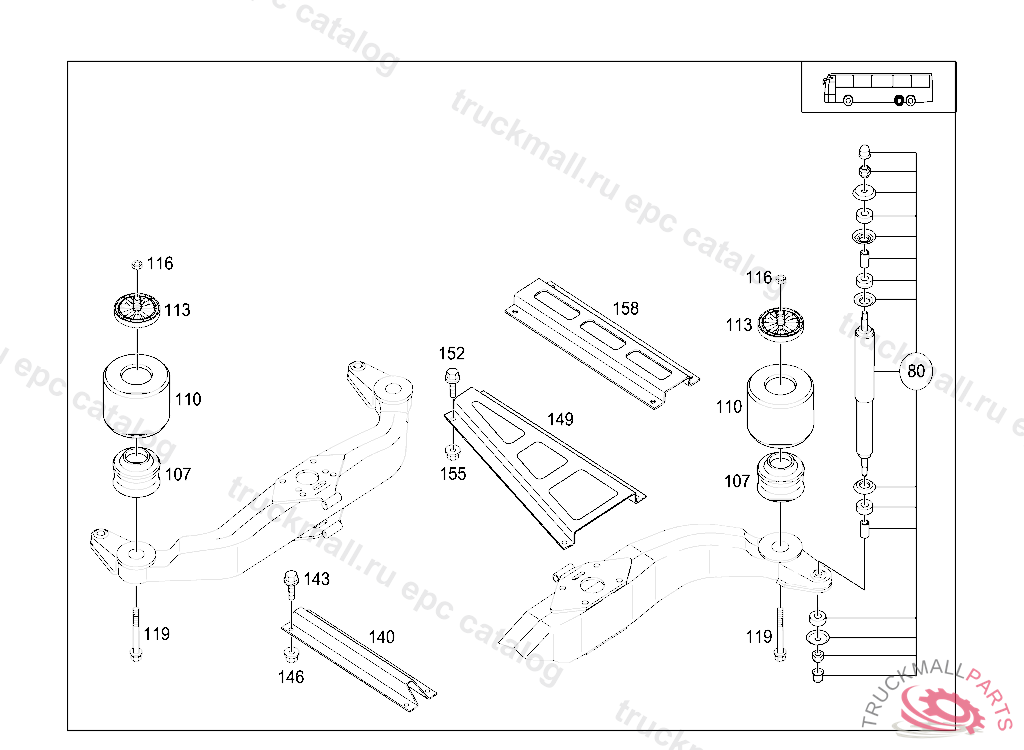

TRAVEGO RHD-M - 632.246 - 32 SPRINGS AND SUSPENSION
Поз.
Артикул
Описание
80
SHOCK ABSORBER COMPLETE
107
PISTON
110
BELLOWS. BOOT
113
PLATED 132.5
116
NUTM24X1.5-14H
119
HEXAGON HEAD BOLTM16X1.5X110
119
HEXAGON HEAD BOLT TRAILER COUPLING TO FRONT CROSS MEMBER M16X1.5X45
140
SUPPORT FRONT
143
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
143
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
146
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
146
NUTM24X1.5-14H
146
NUT SUPPORT TO FRAME
149
SUPPORT REAR
152
HEXAGON HEAD BOLT AT FRAME, REAR M16X1.5X40
155
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
158
BEAM REAR
