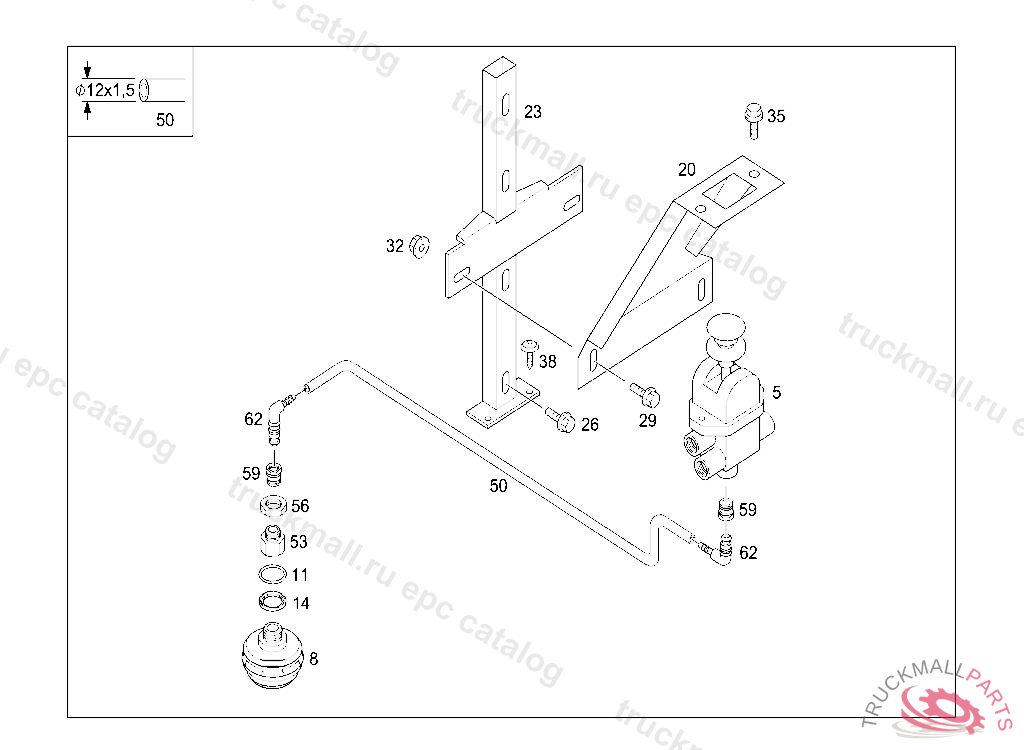

Поз.
Артикул
Описание
5
VALVE PARKING BRAKE WITH EMERGENCY RELEASE DEVICE, LESS TRAILER CONTROL KNORR, 14.08
8
MUFFLER TRAILER CONTROL VALVE
11
SEAL RING20.3X2.4
14
THRUST RING CHECK VALVE TO AIR RESERVOIR
20
BRACKET (PARKING BRAKE VALVE)
23
BRACKET
26
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
29
SCREWM8X80
32
NUT ENGINE MOUNTING M8
35
SCREW SPEED SENSOR TO REAR AXLE
38
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
50
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
53
FITTING AT AIR RESERVOIR
56
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
59
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
62
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 9 MM, VOSS 232
