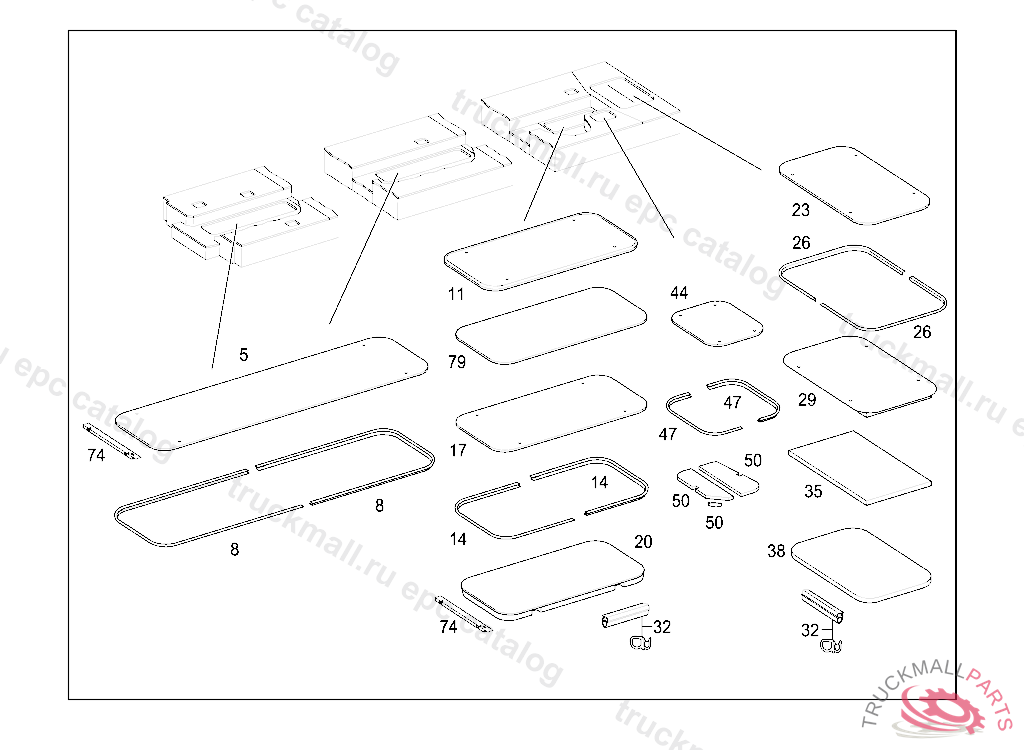

TRAVEGO RHD-L - 632.247 - 68 PANELLING AND LINING
Поз.
Артикул
Описание
5
FLOOR FLAP
5
FLOOR FLAP
8
BINDING RAIL
8
BINDING RAIL
11
FLOOR FLAP ABOVE TRANSMISSION
11
FLOOR FLAP ABOVE TRANSMISSION
14
BINDING RAIL
14
BINDING RAIL
17
INSULATION
20
INSULATION910X423X30MM
23
FLOOR FLAP
23
FLOOR FLAP
26
BINDING RAIL
26
BINDING RAIL
29
COVER
32
GASKET , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
35
INSULATION
38
INSULATION
44
FLOOR FLAP VIA AIR INTAKE
44
FLOOR FLAP VIA AIR INTAKE
47
BINDING RAIL
47
BINDING RAIL
50
INSULATION , TO BE ADAPTED DURING ASSEMBLY
74
RETAINING RAIL FOR BOTTOM COVER
79
FLOOR FLAP
