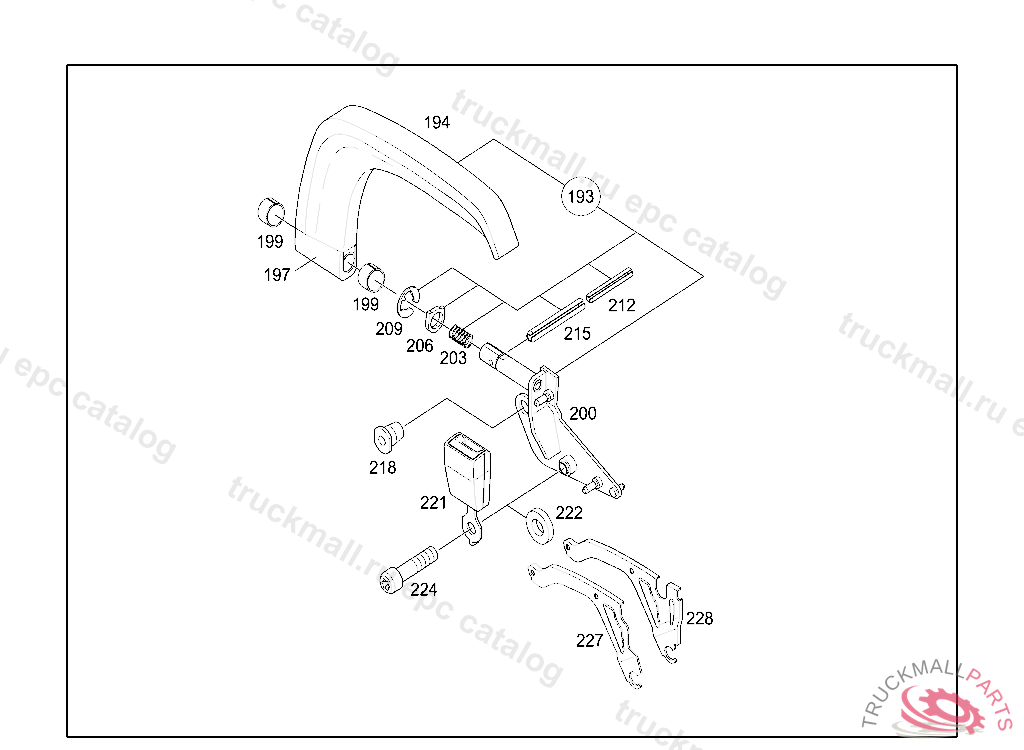

TRAVEGO RHD-L - 632.247 - 97 SEAT ACCESSORIES
Поз.
Артикул
Описание
193
ARMREST LESS COVER ON SIDE OF AISLE,RIGHT
193
ARMREST LESS COVER ON SIDE OF AISLE,LEFT
194
ARMREST LESS COVER RIGHT
194
ARMREST LESS COVER LEFT
197
CAP RIGHT
197
CAP LEFT
199
BUSHING
200
SUPPORT LEFT
200
SUPPORT RIGHT
203
SPRING
206
BUSHING
209
LOCK PLATE
212
ROLL PIN3,5 X 22
215
ROLL PIN6X22MM
218
PIN
221
FASTENER
222
WASHER DAMPER STRUT TO RUBBER MOUNTING
224
SCREWM10X32MM
227
REINFORCEMENT ON CORRIDOR SIDE ON LEFT,WITH SEAT BELT BUCKLE
227
REINFORCEMENT .
228
REINFORCEMENT W/O SEAT BELT BUCKLE, RIGHT
228
REINFORCEMENT W/O SEAT BELT BUCKLE, LEFT
