Поз.
Артикул
Описание

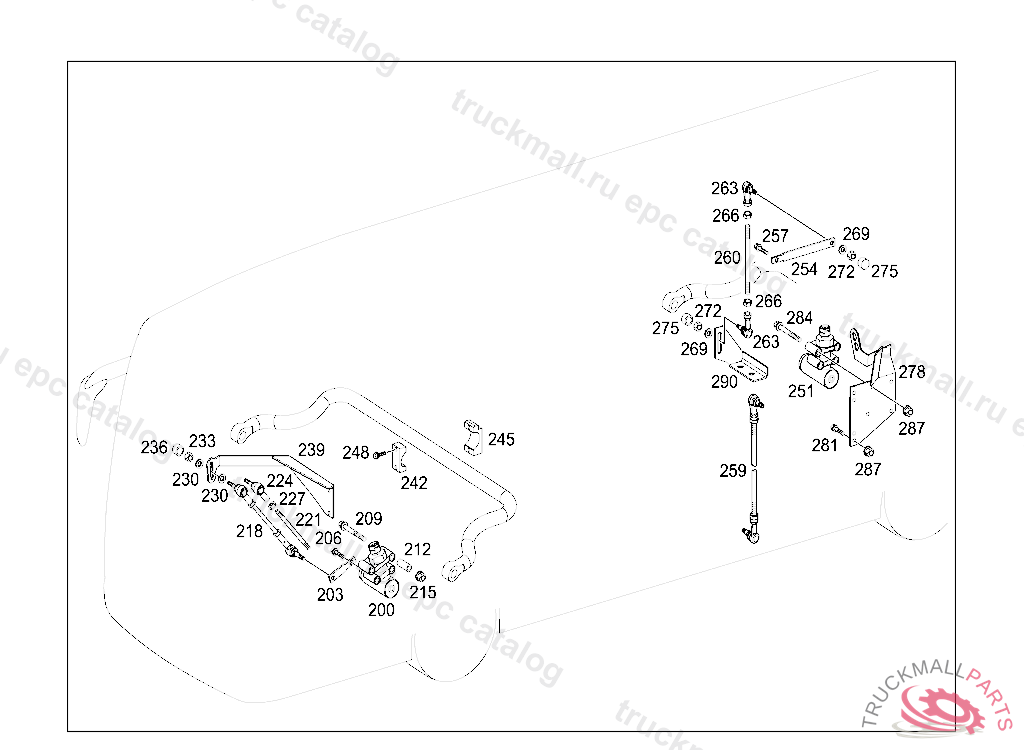

200
TRAVEL SENSOR SELF-LEVELLING DEVICE
203
LEVER ACTUATION OF POSITION SENSOR 83 LG
206
SCREW GUIDE TUBE TO BRACKET M6X16,*0354969
209
SCREW , Replaced By: N910105008007
212
SPACER SLEEVE
215
NUT ENGINE MOUNTING M8
218
ROD COMPLETE
221
RODM8/160LG
224
JOINTA13, Replaced By: A0019962545
224
ANGLE JOINTA13
227
NUT
230
WASHER PUMP TO CONSOLE
233
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
236
PROTECTION CAP MOUNTING TO BODY
239
LEVER
242
COVER
245
COVER
248
SCREW 3/2-WAY VALVE TO BRACKET
251
TRAVEL SENSOR SELF-LEVELLING DEVICE
254
LEVER ACTUATION OF POSITION SENSOR LG 185
257
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
259
CONTROL ROD COMPLETE
260
RODM8/140LG
263
JOINTA13, Replaced By: A0019962545
263
ANGLE JOINTA13
266
NUT
269
WASHER PUMP TO CONSOLE
272
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
275
PROTECTION CAP MOUNTING TO BODY
278
BRACKET RIGHT
278
BRACKET LEFT
281
SCREW BRACKET TO SIDE MEMBER M8X20
284
HEXALOBULAR BOLT TRAVEL SENSOR TO BRACKET,K 186868
287
NUT ENGINE MOUNTING M8
290
BRACKET LEFT
290
BRACKET RIGHT
