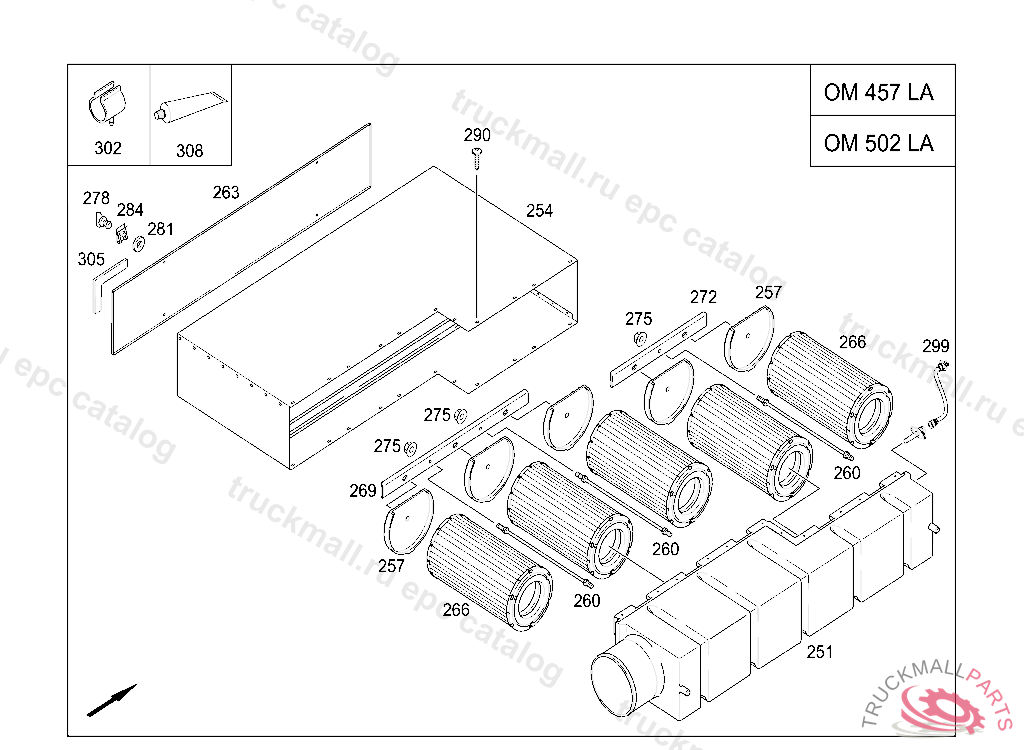

TRAVEGO RHD-L - 632.247 - 52 CHASSIS SHEET METAL
Поз.
Артикул
Описание
251
AIR INTAKE PIPE
254
AIR INTAKE CASE
257
COVER
260
ROD
263
COVERING
266
FILTER ELEMENT
269
STIFFENING
272
STIFFENING
275
NUT HORN TO BRACKET M8
278
PIVOT
281
WASHER6 MM
284
FASTENER ,A 144703 AUSTRALIA UP TO END OF MODELYEAR 93
290
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
299
CABLE HARNESS
302
BRACKET
305
MOSS TYPE RUBBER SELF-ADHESIVE ON ONE SIDE 3X22MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
308
ADHESIVELOCTITE262
