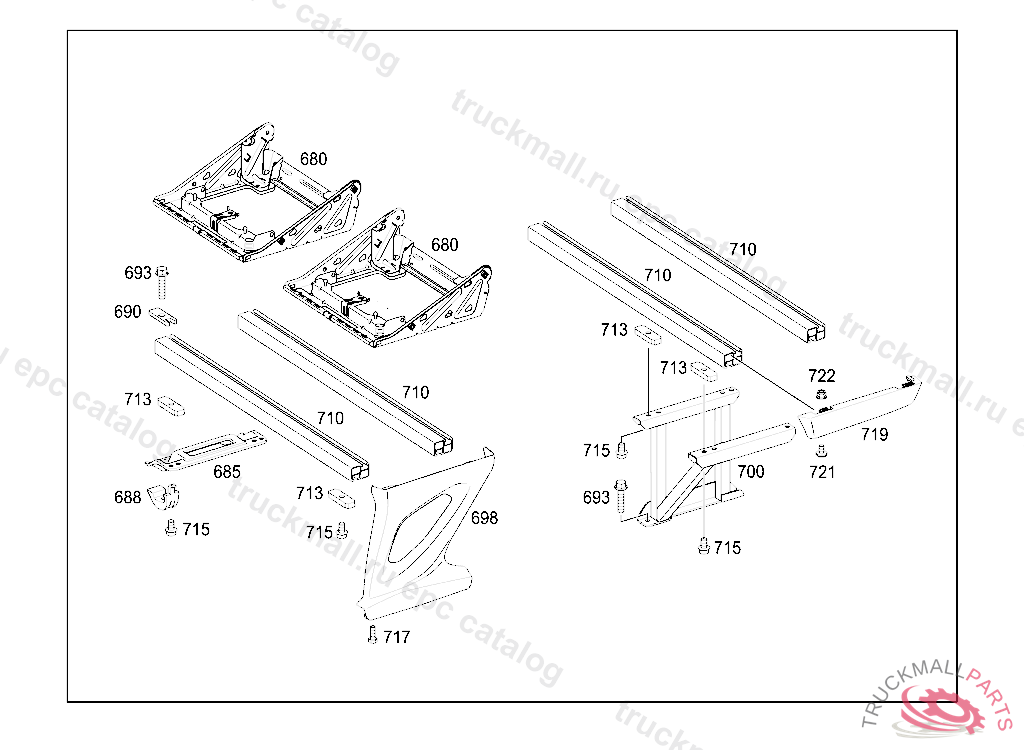

TRAVEGO EURO 6 - 632.400 - 95 MULTIBLE OCCUPANCY SEAT
Поз.
Артикул
Описание
680
SEAT FRAME UPPER PART
685
CONSOLE
685
CONSOLE LEFT
685
CONSOLE
688
ATTACHMENT ANGLE BRACKET
688
ATTACHMENT ANGLE BRACKET
690
REINFORCEMENT PLATE
693
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
698
SEAT BASE RIGHT
698
SEAT BASE LEFT
698
SEAT BASE RIGHT
698
SEAT BASE LEFT
700
SEAT BASE SEAT FRAME,LEFT AHEAD OF REAR
700
SEAT BASE SEAT FRAME,RIGHT AHEAD OF REAR
710
SUPPORTING TUBE
710
SUPPORTING TUBE
713
GUIDE PLATE
715
SCREWM 10 X 14
717
SCREW PIPE CLAMP
719
EDGE PROTECTION LEFT
719
EDGE PROTECTION
721
SCREW FOR T-CHANNELM8X20
722
NUT HORN TO BRACKET M8
