Поз.
Артикул
Описание

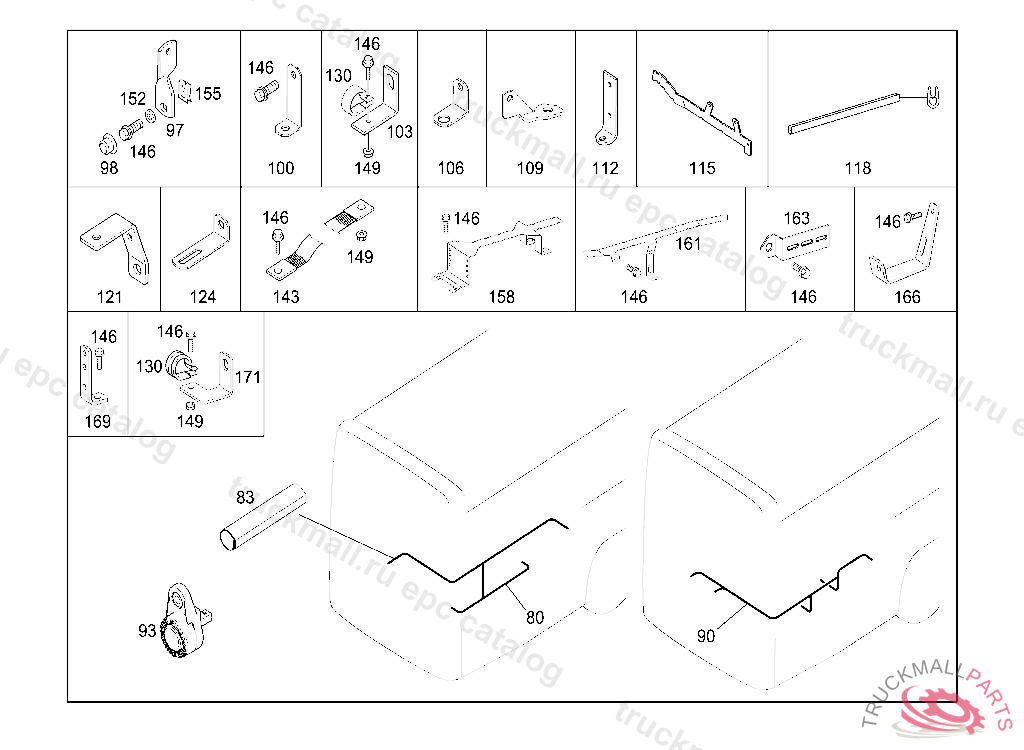

93
PUSH-BUTTON SWITCH FUEL PUMP
98
PROTECTION CAP MOUNTING TO BODY
130
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
130
CLAMP38/20
130
CLAMP SUCTION/DELIVERY/RETURN LINES 12/15MM
130
MOUNTING CLAMP22/15
130
MOUNTING CLAMP16/15
130
CLAMP10/15
130
CLAMP10/20
143
ELECTRICAL WIRING HARNESS GROUND CABLE TO ENGINE
143
ELECTRICAL WIRING HARNESS RIGHT GROUND LINE
143
ELECTRICAL WIRING HARNESS LEFT GROUND LINE
146
SCREW BRACKET AND CLAMP M6X20
146
SCREW BRACKET TO CAB REAR PANEL M 8X20
146
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
146
SCREW , Replaced By: N914146006102
146
HEXAGON HEAD BOLT. SCREWM 12X1,5X20 MM - TO A 202 490 08 41
146
SCREW , Replaced By: N910143008000
146
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
146
SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
146
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
149
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
149
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
149
NUT BRACKET TO FIRE WALL
149
NUT , Replaced By: N913023010002
149
NUT , Replaced By: N913023006001
149
NUT. HEXAGON NUT STRAP TO CONSOLE M12X1.5
158
BRACKET
161
BRACKET TO TRANSMISSION BELL
163
BRACKET
166
BRACKET ENGINE RIGHT
169
BRACKET
171
BRACKET GROUND ENGINE
