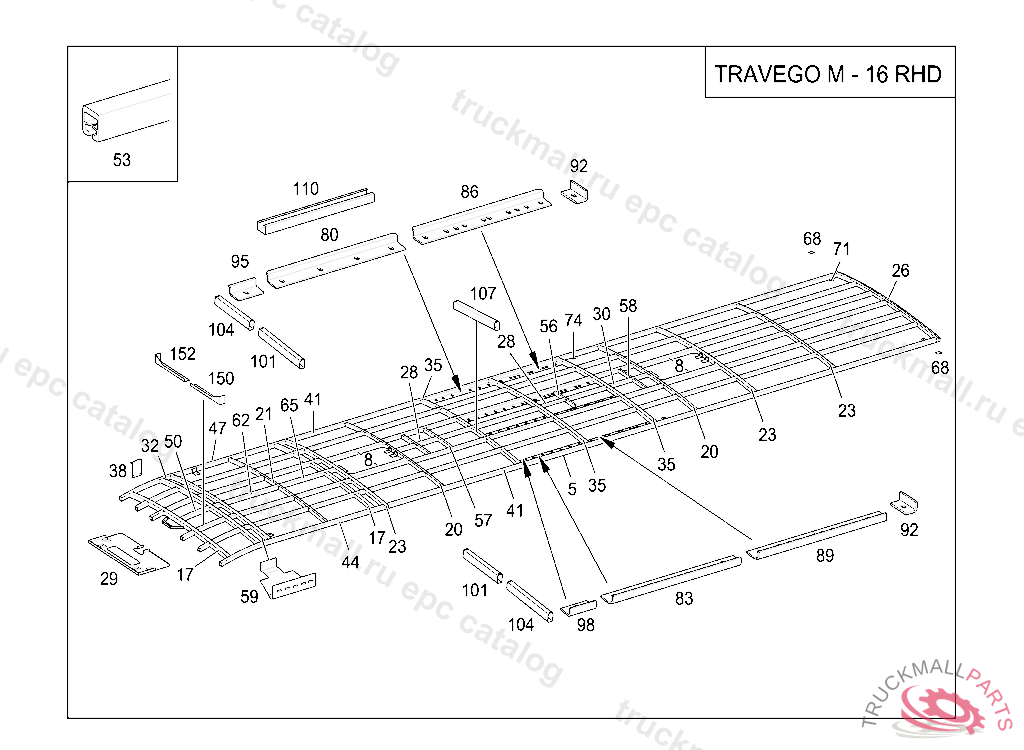

TRAVEGO M EURO 6 - 632.430 - 65 ROOF
Поз.
Артикул
Описание
5
ROOF FRAMEWORK
8
REINFORCEMENT
17
BOW1968LG
20
CROSS BOW
21
CROSS BOW
23
CROSS BOW1968LG
26
BOWL2064MM
28
REST
29
BRACKET MONITOR
30
REST
30
PADDING , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.10.2009
32
CROSS BOW1970LG
35
CROSS BOW
38
ATTACHMENT ANGLE BRACKET , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.09.2011
38
ANGLE
41
ROOF RAIL
44
ROOF RAIL LEFT
47
ROOF RAIL RIGHT
50
RAIL LEFT AND RIGHT L126MM
53
RAIL , A 627 651 03 38 RAIL 40 X 40 X 2230 MM TO BE ADAPTED DURING ASSEMBLY
56
BOW PIECE
57
BOW PIECE
58
BOW PIECE
59
ANGLE B-PILLAR
62
RAIL
65
RAIL
68
PLATE28X48MM
71
BRACKET40X30MM
74
BRACKET40X40 M8
80
RAIL LEFT AND RIGHT L949MM
80
RAIL
83
RAIL
83
RAIL
86
RAIL LEFT AND RIGHT L1146MM
89
RAIL
92
ANGLE
95
RAIL
98
RAIL INSIDE L126MM
101
ROOF BOW
104
ROOF BOW
107
ROOF BOW
110
RAILLG1210
150
BRACKET
152
BRACKET
