Поз.
Артикул
Описание

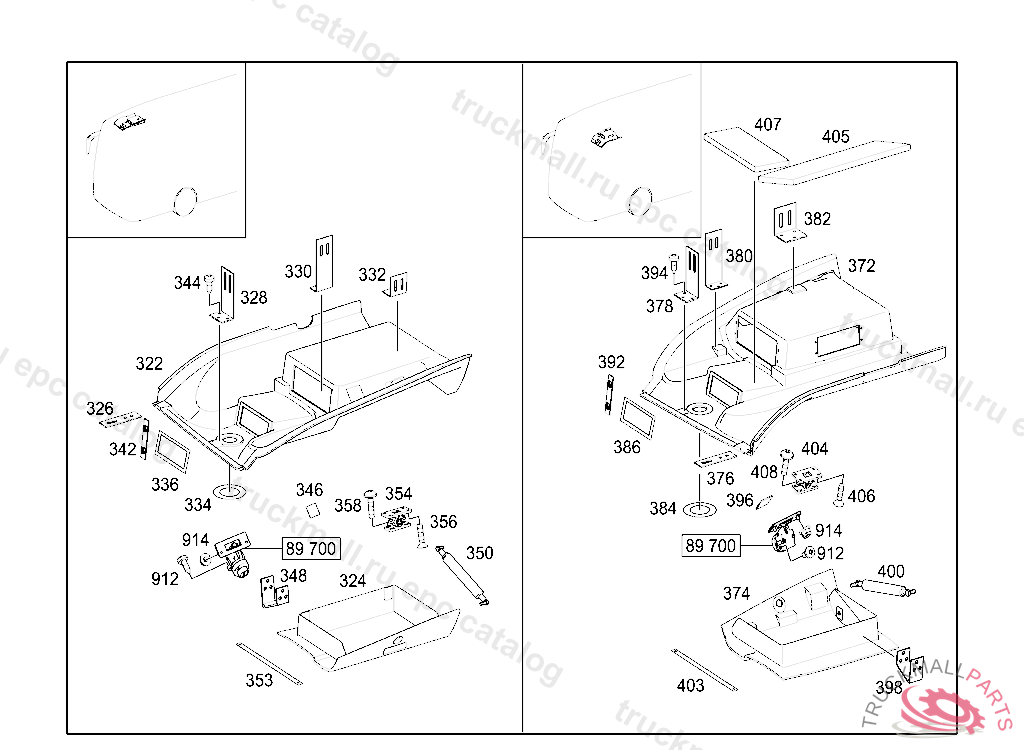

322
HEADLINER
324
STORAGE SPACE ROOF SECTOR
326
MOUNTING PLATE
328
MOUNTING PLATE
330
MOUNTING PLATE
332
MOUNTING PLATE
334
PLATE
336
PLATE
342
PLATE
344
SHEET METAL SCREW BRACKET TO FLOOR PLATE
346
PLATE
348
HINGE
350
MUFFLER
353
HOLDING ROPE , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 13.03.06
354
SNAP LOCK
356
SCREW
358
HEXALOBULAR BOLT MOUNTING PARTS M4X16
372
HEADLINER
374
STORAGE SPACE ROOF SECTOR
376
MOUNTING PLATE
378
MOUNTING PLATE
380
MOUNTING PLATE
382
MOUNTING PLATE
384
PLATE
386
PLATE
392
PLATE
394
SHEET METAL SCREW BRACKET TO FLOOR PLATE
396
PLATE
398
HINGE
400
MUFFLER
403
HOLDING ROPE , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 13.03.06
404
SNAP LOCK
405
INSULATION MAT FRONT CABINET 20X1000X1060MM, TO BE ADAPTED DURING ASSEMBLY
406
SCREW
407
INSULATION MAT FRONT CABINET 20X1000X1060MM, TO BE ADAPTED DURING ASSEMBLY
408
HEXALOBULAR BOLT MOUNTING PARTS M4X16
912
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
914
NUT RELAY TO BRACKET M5
