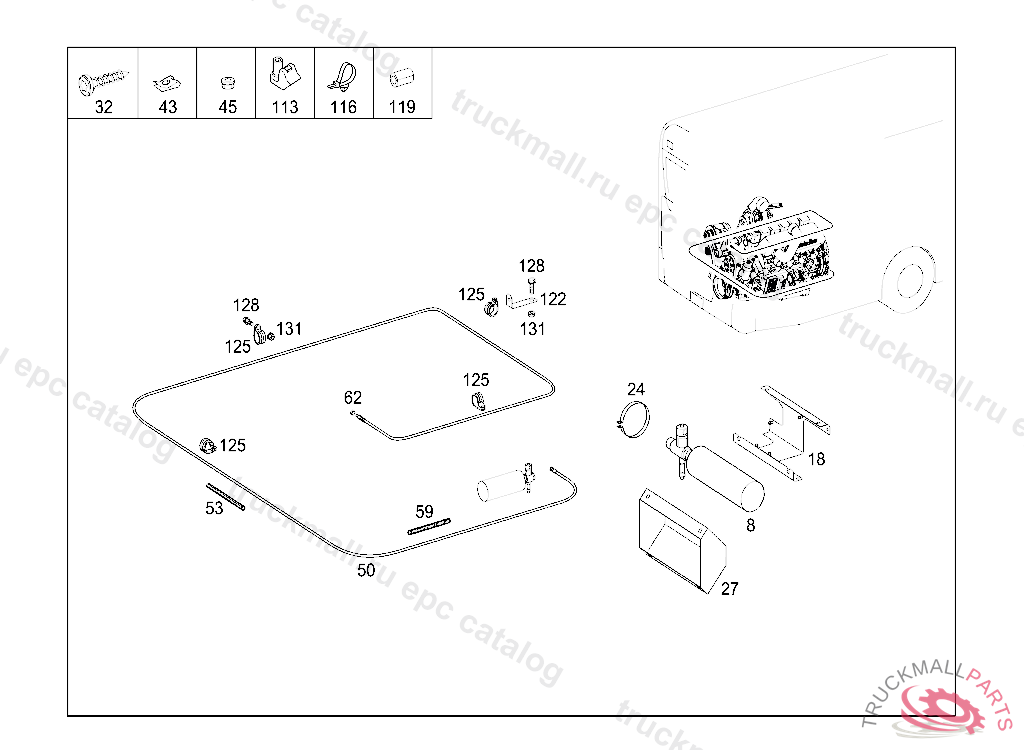

Поз.
Артикул
Описание
8
PRESSURE AGENT CONTAINER EXTINGUISHING AGENT ANSCHL. 90 GRAD2DR. SCHALTER
18
CONSOLE
24
CLAMP , Replaced By: A0059972990
27
COVER
43
LOCK NUT. SPRING NUT MOUNTING PARTS
43
LOCK NUT MOUNTING, COVER, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019900856
45
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
50
DETECTOR TUBE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
53
SPIRAL SPRING , TO BE ADAPTED DURING ASSEMBLY
59
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
62
TEST CONNECTION T-FITTING
62
TEST CONNECTION
116
CABLE TIE
116
CABLE TIE310X5MM
125
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
125
CLAMP LINE MOUNTING 8/15
128
SCREW , Replaced By: N914146006102
128
SCREW BRACKET AND CLAMP M6X20
128
SCREW , Replaced By: N910143008002
131
NUT , Replaced By: N913023006001
