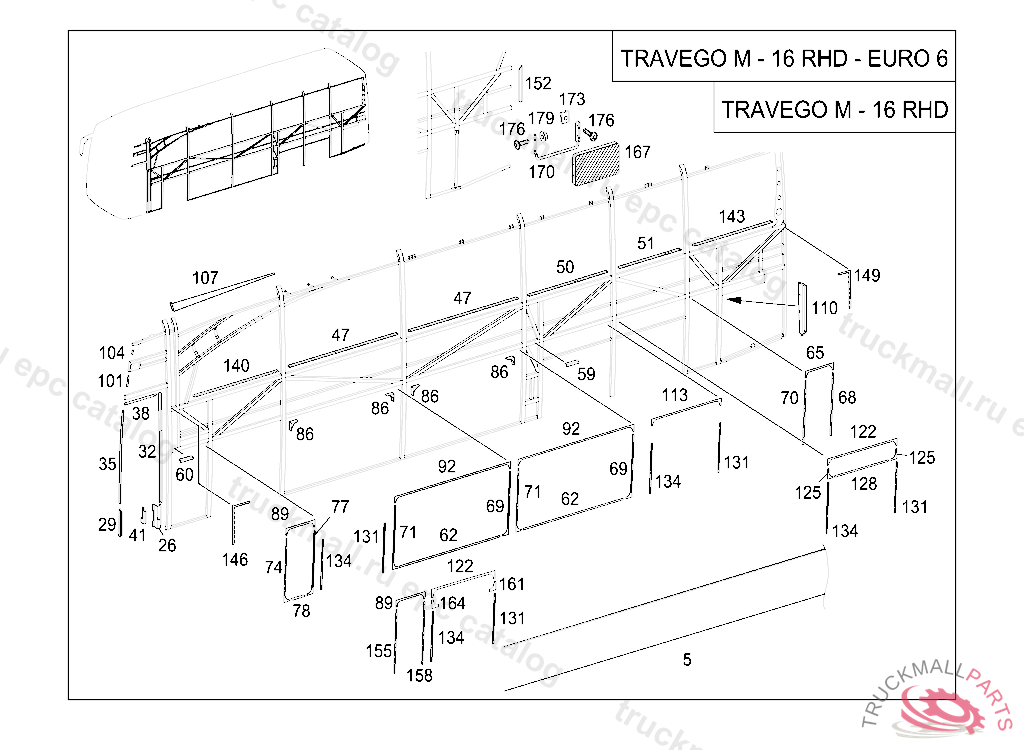

TRAVEGO M EURO 6 - 632.430 - 63 SIDE PANELS
Поз.
Артикул
Описание
5
SIDEWALL PANELING LEFT 11442MM
26
ATTACHMENT ANGLE BRACKET
29
ANGLE
32
ANGLE
35
ANGLE DRIVER'S PLACE
38
ANGLE DRIVER'S PLACE
47
ANGLE2135LG
50
ANGLE1570MM
51
ANGLE1270MM
59
ANGLE105LG
60
ANGLE78MM
62
ANGLE2135MM
68
ANGLE1090MM
69
ANGLE RIGHT
71
ANGLE LEFT
86
REINFORCEMENT
89
ANGLE TOP 520MM
92
ANGLE2000MM
101
ANGLE150MM
104
ANGLE215MM
107
COVERING PARCEL RACK
122
ANGLE TOP
125
ANGLE
128
ANGLE TOP
131
ANGLE
134
ANGLE LATERAL
140
ANGLE1775LG
143
ANGLE SIDE WINDOW PANES
146
INTERMEDIATE LAYER
152
INTERMEDIATE LAYER
155
ANGLE LATERAL 1090MM, Replaced By: A6296370712
158
ANGLE1090MM
161
ANGLE LATERAL
164
ANGLE LATERAL
167
AIR GUIDE
170
ATTACHMENT ANGLE BRACKET
170
ATTACHMENT ANGLE BRACKET
173
NUT LOCK TO COVER
176
HEXALOBULAR BOLTM5X12
176
HEXALOBULAR BOLT. SCREW STEP TO ENTRANCE
179
NUT RELAY TO BRACKET M5
