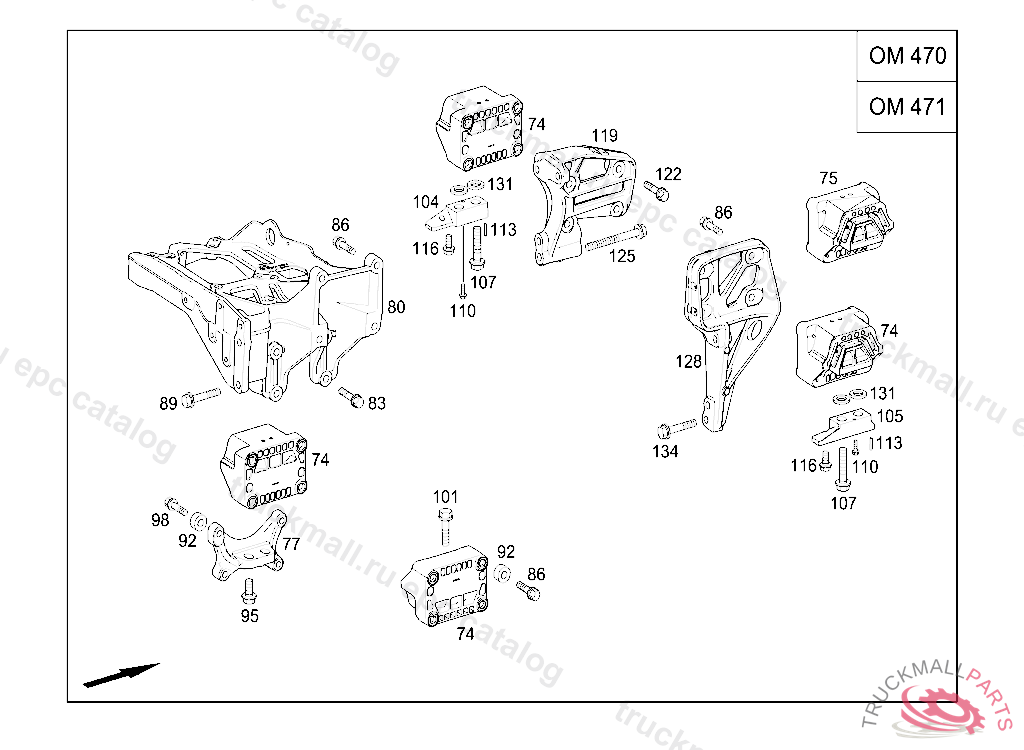

Поз.
Артикул
Описание
74
ENGINE SUPPORT LEFT AND RIGHT,FRONT AND REAR
75
ENGINE SUPPORT FRONT RIGHT
77
BRACKET REAR LEFT
80
CONSOLE REAR LEFT
80
CONSOLE REAR LEFT
83
HEXAGON HEAD BOLT BRACKET TO BRACKET M16X1.5X65
86
HEXAGON HEAD BOLT TRAILER COUPLING TO REAR CROSS MEMBER M14X1.5X55
86
HEXAGON HEAD BOLT SHACKLE TO TORSION BAR AND TO CONSOLE M16X1.5X60
89
HEXAGON HEAD BOLT CONTROL ARM TO FRONT AXLE AND TO FRAME M16X1.5X90
92
BUSH WITHOUT CHAMFER REAR
95
HEXAGON HEAD BOLT STEERING BRACKET TO FRAME M18X1.5X50
98
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M16 X 1.5 X 50
101
HEXAGON HEAD BOLT TRAILER COUPLING TO FRONT CROSS MEMBER M18X1.5X70
104
INTERMEDIATE LAYER FRONT LEFT
104
INTERMEDIATE LAYER FRONT LEFT
105
INTERMEDIATE LAYER FRONT RIGHT
105
INTERMEDIATE LAYER FRONT RIGHT
107
HEXAGON HEAD BOLT. SCREW SUPPORTING ARM TO ENGINE REAR MOUNTING M 18X1.5X80
110
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
113
ROLL PIN6 X 28
116
HEXAGON HEAD BOLT BRACKET TO FRAME M14X1.5X30
119
ENGINE MOUNT LEFT FRONT
119
ENGINE MOUNT FRONT LEFT
122
HEXAGON HEAD BOLT ANCHORING LUGS AT FRAME M16X1.5X70,229553
125
BOLT AND WASHER ASSY.M 16X1,5X160
128
ENGINE MOUNT RIGHT FRONT
128
ENGINE MOUNT RIGHT FRONT
131
COVER PLATE
134
HEXAGON HEAD BOLTM 16X1,5X70
134
HEXAGON HEAD BOLTM 16X1,5X80
134
HEXAGON HEAD BOLTM 16X1,5X160
