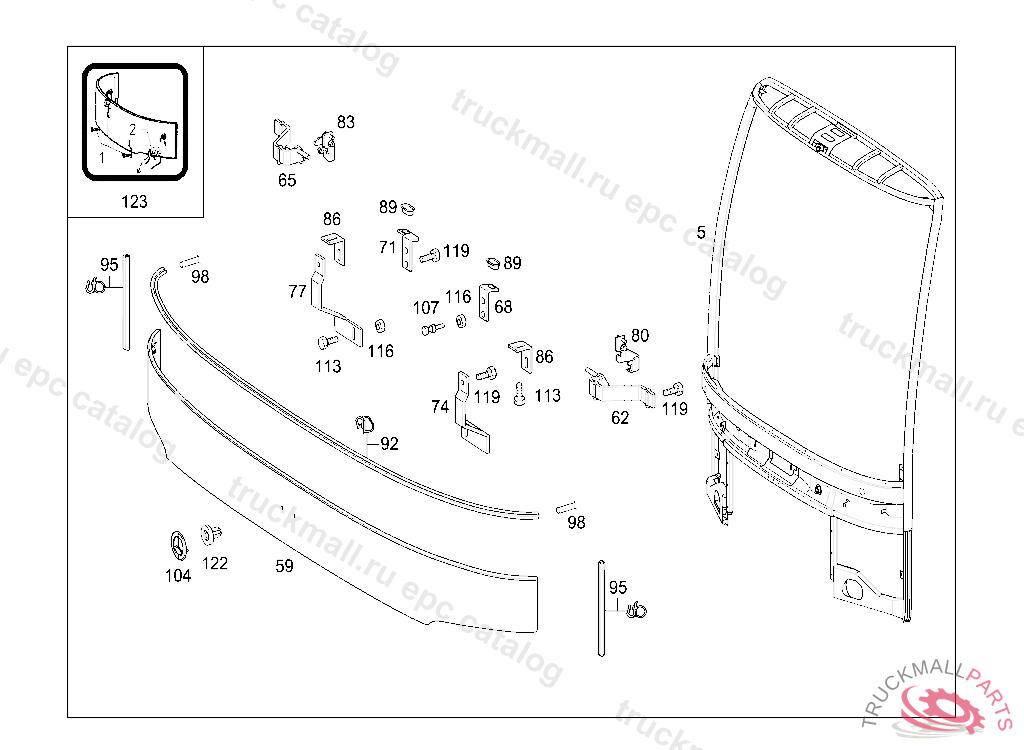

TRAVEGO L EURO 6 - 632.450 - 62 COWL,FRONT PANEL
Поз.
Артикул
Описание
5
FRONT PANEL
59
COVERING
62
CONSOLE LEFT
65
CONSOLE RIGHT
68
BRACKET97X30MM
71
BRACKET
74
BRACKET LEFT
77
BRACKET RIGHT
80
BRACKET LEFT
83
BRACKET RIGHT
86
BRACKET RIGHT CENTRAL
89
BUSHING8,3X20MM
92
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
95
RUBBER SECTION BLACK PVC, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
98
INSULATING HOSE BLACK 10 MM, ORDER BY THE METER
104
BADGE COWL TOP FLAP
107
RUBBER BUFFER
113
SCREW BRACKET TO CAB REAR PANEL M 8X20
116
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
119
HEXAGON HEAD BOLT
122
CLIP TYPE DESIGNATION TO CAB
123
GUMMED LABEL
